AB26TRB-32.768KHZ-T,Abracon進口晶振,32.768KHz,-40~85°C,Abracon進口晶振,AB26TRB-32.768KHZ-T晶振,32.768KHz晶振,工作溫度-40~85°C,負載12.5pf,石英SMD晶振,歐美晶振,無源晶振,高精度晶振,低老化晶振,實時時鐘晶振,測量儀器晶振,藍牙音響晶振,無線局域網晶振,無線通信設備晶振.
AB26TRB-32.768KHZ-T,Abracon進口晶振,32.768KHz,-40~85°C 特點
•為低成本SMD型成型引腳
•出色的抗震性
•回流功能
•消費者應用的低成本
•IR回流能力

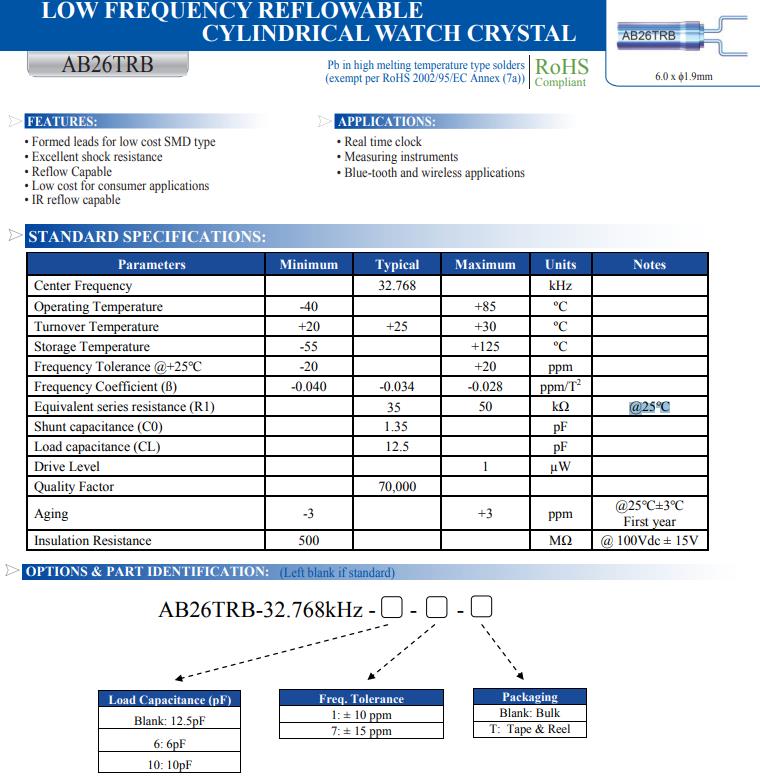

AB26TRB-32.768KHZ-T,Abracon進口晶振,32.768KHz,-40~85°C,參數圖

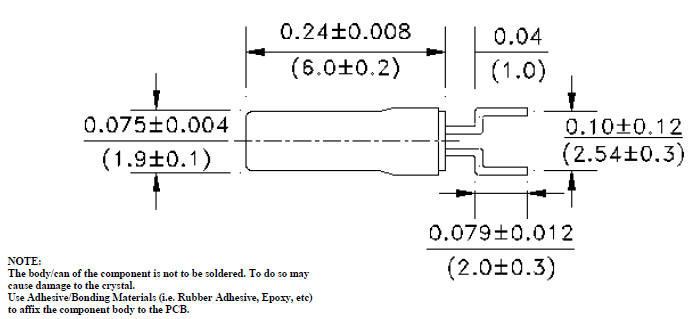

AB26TRB-32.768KHZ-T,Abracon進口晶振,32.768KHz,-40~85°C 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率偏差	負載電容	工作溫度
AB38T-32.768KHZ	Abracon晶振	AB38T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26T-32.768KHZ	Abracon晶振	AB26T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB15T-32.768KHZ	Abracon晶振	AB15T	32.768kHz	±20ppm	12.5pF	-20°C ~ 70°C
