- 規格型號：66409145
- 頻率：16MHz
- 尺寸：13.2 × 13.2 × 5.1mm
- 產品描述：美國CTS石英晶體振蕩器,型號MXO45HS,編碼MXO45HST-3C-16M0000,頻率16MHz,電壓5V,工作溫度-20~70°C,采用8針DIP封裝,基本和第三泛音水晶設計,是傳統的通孔時鐘振蕩器,可以用于6G路由器,無線網絡設備,測試與測量儀器,計...
MXO45HST-3C-16M0000,6G路由器晶振,美國CTS石英晶體振蕩器
MXO45HST-3C-16M0000,6G路由器晶振,美國CTS石英晶體振蕩器,美國CTS石英晶體振蕩器,型號MXO45HS,編碼MXO45HST-3C-16M0000,頻率16MHz,電壓5V,頻率穩定度50ppm,工作溫度-20~70°C,采用8針DIP封裝,基本和第三泛音水晶設計,是傳統的通孔時鐘振蕩器,有源晶振,可以用于6G路由器,無線網絡設備,測試與測量儀器,計算機應用,光纖通道等產品.

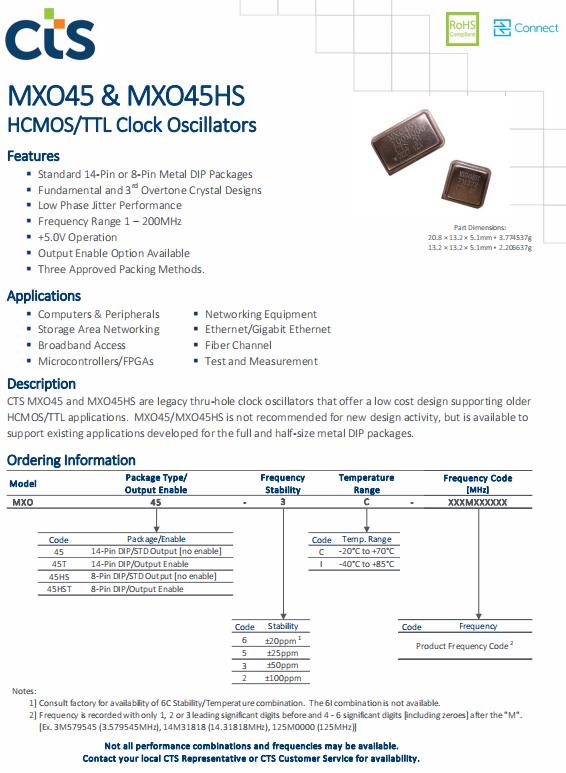

MXO45HST-3C-16M0000,6G路由器晶振,美國CTS石英晶體振蕩器特點：
·標準8針金屬DIP封裝
·基本和第三泛音水晶設計
·低相位抖動性能
·頻率范圍1 - 200MHz
·+5.0V操作
·可選輸出啟用選項
·三種經批準的包裝方法
MXO45HST-3C-16M0000,6G路由器晶振,美國CTS石英晶體振蕩器,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 16MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 5V | |
| 儲存溫度 | T_stg | -40℃~+100℃ | 開封裸存 |
| 工作溫度 | T_use | -20℃~ +70℃ | |
| 頻率穩定度 | f_tol | ±50 ppm | -20℃~ +70℃ |
| 功耗 | Icc | 26mA Max |
1MHz to 20MHz [CL = 50pF]
|
| 輸出占空比 | SYM |
45%MIN 55%MAX |
@ 50% Level
|
| 輸出電壓 | VOH | Vcc-0.9V Min | CMOS Load |
| VOL | Vcc-0.1V Max | CMOS Load | |
| 輸出方式 | HCMOS | ||
| 輸出電流電平 | IOH | 80 % VCC Min. | -16mA |
| IOL | 20 % VCC Max. | 16mA | |
| 上升/下降時間 | tr/ tf | 10ns max | 1MHz to 20MHz [CL = 50pF] |
| 振蕩啟動時間 | t_str | 10ms max | Application of VCC, CL = 15pF |
| 頻率老化 | f_aging | ±5ppm max | +25 °C, 第一年,nominal VCC |

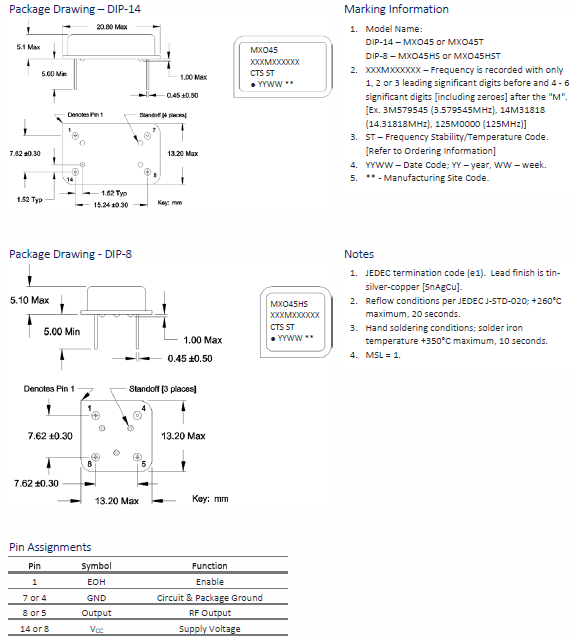

MXO45HST-3C-16M0000,6G路由器晶振,美國CTS石英晶體振蕩器 尺寸圖
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 工作溫度 |
| MXO45HST-3C-40M0000 | CTS晶振 | MXO45HS | 40MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-4M0000 | CTS晶振 | MXO45HS | 4MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-25M0000 | CTS晶振 | MXO45HS | 25MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-2C-40M0000 | CTS晶振 | MXO45HS | 40MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-3C-3M6864 | CTS晶振 | MXO45HS | 3.6864MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-10M0000 | CTS晶振 | MXO45HS | 10MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-16M0000 | CTS晶振 | MXO45HS | 16MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-5M0000 | CTS晶振 | MXO45HS | 5MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-32M0000 | CTS晶振 | MXO45HS | 32MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-50M0000 | CTS晶振 | MXO45HS | 50MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-16M0000 | CTS晶振 | MXO45HS | 16MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-1M8432 | CTS晶振 | MXO45HS | 1.8432MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-24M0000 | CTS晶振 | MXO45HS | 24MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-1M0000 | CTS晶振 | MXO45HS | 1MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-40M0000 | CTS晶振 | MXO45HS | 40MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-32M0000 | CTS晶振 | MXO45HS | 32MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-4M9152 | CTS晶振 | MXO45HS | 4.9152MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-1M0000 | CTS晶振 | MXO45HS | 1MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-20M0000 | CTS晶振 | MXO45HS | 20MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-14M31818 | CTS晶振 | MXO45HS | 14.31818MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-50M0000 | CTS晶振 | MXO45HS | 50MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-7M3728 | CTS晶振 | MXO45HS | 7.3728MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-8M0000 | CTS晶振 | MXO45HS | 8MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-20M0000 | CTS晶振 | MXO45HS | 20MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-80M0000 | CTS晶振 | MXO45HS | 80MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-2C-1M0000 | CTS晶振 | MXO45HS | 1MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-3C-5M0000 | CTS晶振 | MXO45HS | 5MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-6M0000 | CTS晶振 | MXO45HS | 6MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-18M4320 | CTS晶振 | MXO45HS | 18.432MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-25M1750 | CTS晶振 | MXO45HS | 25.175MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-2C-2M0000 | CTS晶振 | MXO45HS | 2MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-18M4320 | CTS晶振 | MXO45HS | 18.432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-19M6608 | CTS晶振 | MXO45HS | 19.6608MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-16M0000 | CTS晶振 | MXO45HS | 16MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-14M31818 | CTS晶振 | MXO45HS | 14.31818MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-12M0000 | CTS晶振 | MXO45HS | 12MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-10M0000 | CTS晶振 | MXO45HS | 10MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-8M0000 | CTS晶振 | MXO45HS | 8MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-7M3728 | CTS晶振 | MXO45HS | 7.3728MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-6M1440 | CTS晶振 | MXO45HS | 6.144MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-6M0000 | CTS晶振 | MXO45HS | 6MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-5M0688 | CTS晶振 | MXO45HS | 5.0688MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-5M0000 | CTS晶振 | MXO45HS | 5MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-4M9152 | CTS晶振 | MXO45HS | 4.9152MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-4M0000 | CTS晶振 | MXO45HS | 4MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-3M6864 | CTS晶振 | MXO45HS | 3.6864MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-2M4576 | CTS晶振 | MXO45HS | 2.4576MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-1M8432 | CTS晶振 | MXO45HS | 1.8432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-20M0000 | CTS晶振 | MXO45HS | 20MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-24M0000 | CTS晶振 | MXO45HS | 24MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-25M0000 | CTS晶振 | MXO45HS | 25MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-28M3220 | CTS晶振 | MXO45HS | 28.322MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-32M0000 | CTS晶振 | MXO45HS | 32MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-50M0000 | CTS晶振 | MXO45HS | 50MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-2C-25M1750 | CTS晶振 | MXO45HS | 25.175MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-1M0000 | CTS晶振 | MXO45HS | 1MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-1M8432 | CTS晶振 | MXO45HS | 1.8432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-2M0000 | CTS晶振 | MXO45HS | 2MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-2M4576 | CTS晶振 | MXO45HS | 2.4576MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-3M6864 | CTS晶振 | MXO45HS | 3.6864MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-4M0000 | CTS晶振 | MXO45HS | 4MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-4M9152 | CTS晶振 | MXO45HS | 4.9152MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-5M0000 | CTS晶振 | MXO45HS | 5MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-5M0688 | CTS晶振 | MXO45HS | 5.0688MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-6M0000 | CTS晶振 | MXO45HS | 6MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-6M1440 | CTS晶振 | MXO45HS | 6.144MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-7M3728 | CTS晶振 | MXO45HS | 7.3728MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-8M0000 | CTS晶振 | MXO45HS | 8MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-10M0000 | CTS晶振 | MXO45HS | 10MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-12M0000 | CTS晶振 | MXO45HS | 12MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-14M31818 | CTS晶振 | MXO45HS | 14.31818MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-16M0000 | CTS晶振 | MXO45HS | 16MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-18M4320 | CTS晶振 | MXO45HS | 18.432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-19M6608 | CTS晶振 | MXO45HS | 19.6608MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-20M0000 | CTS晶振 | MXO45HS | 20MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-24M0000 | CTS晶振 | MXO45HS | 24MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-25M0000 | CTS晶振 | MXO45HS | 25MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-25M1750 | CTS晶振 | MXO45HS | 25.175MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-28M3220 | CTS晶振 | MXO45HS | 28.332MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-32M0000 | CTS晶振 | MXO45HS | 32MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-40M0000 | CTS晶振 | MXO45HS | 40MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-50M0000 | CTS晶振 | MXO45HS | 50MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-64M0000 | CTS晶振 | MXO45HS | 64MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HST-2C-80M0000 | CTS晶振 | MXO45HS | 80MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45HS-3C-12M0000 | CTS晶振 | MXO45HS | 12MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-12M0000 | CTS晶振 | MXO45HS | 12MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-14M31818 | CTS晶振 | MXO45HS | 14.31818MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-19M6608 | CTS晶振 | MXO45HS | 19.6608MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-2M0000 | CTS晶振 | MXO45HS | 2MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-2M4576 | CTS晶振 | MXO45HS | 2.4576MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-2M4576 | CTS晶振 | MXO45HS | 2.4576MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-24M0000 | CTS晶振 | MXO45HS | 24MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-25M1750 | CTS晶振 | MXO45HS | 25.175MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-28M3220 | CTS晶振 | MXO45HS | 28.322MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-28M3220 | CTS晶振 | MXO45HS | 28.322MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-4M0000 | CTS晶振 | MXO45HS | 4MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-4M9152 | CTS晶振 | MXO45HS | 4.9152MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HS-3C-5M0688 | CTS晶振 | MXO45HS | 5.0688MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45HST-3C-5M0688 | CTS晶振 | MXO45HS | 5.0688MHz | 5V | ±50ppm | -20°C ~ 70°C |
