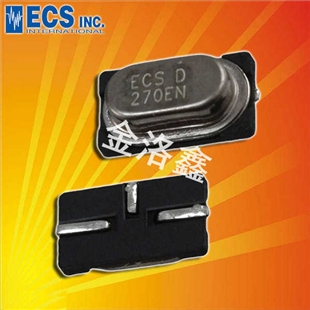

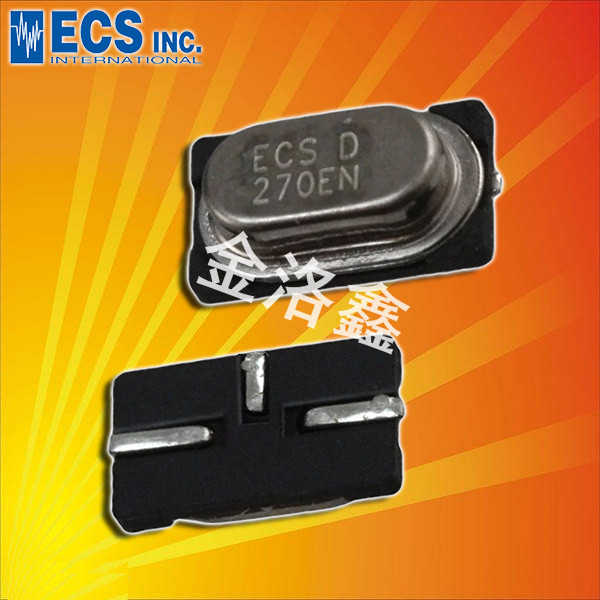

ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm,ECS-122.8-18-5PXEN-TR晶振,美國ECS進口晶振,頻率12.288MHz,精度30ppm,工作溫度-40~85°C,SMD晶體諧振器,耐高溫晶振,無鉛環保晶振,錄音筆晶振,儲存卡晶振,無線路由器晶振,數字電表晶振.

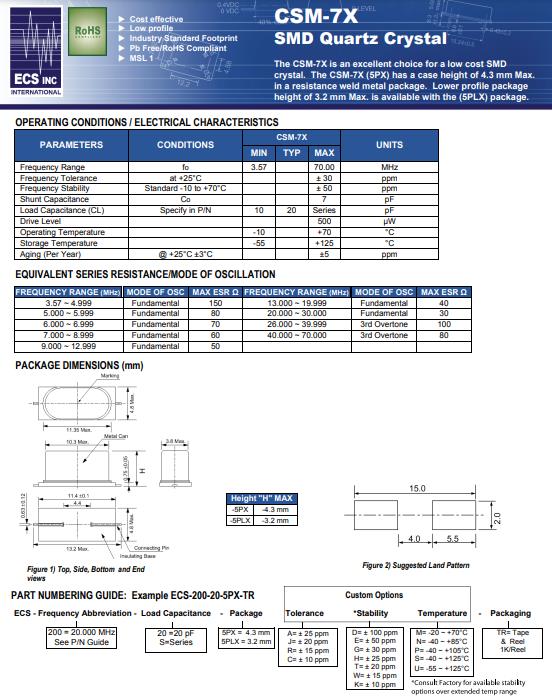

ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm,參數圖

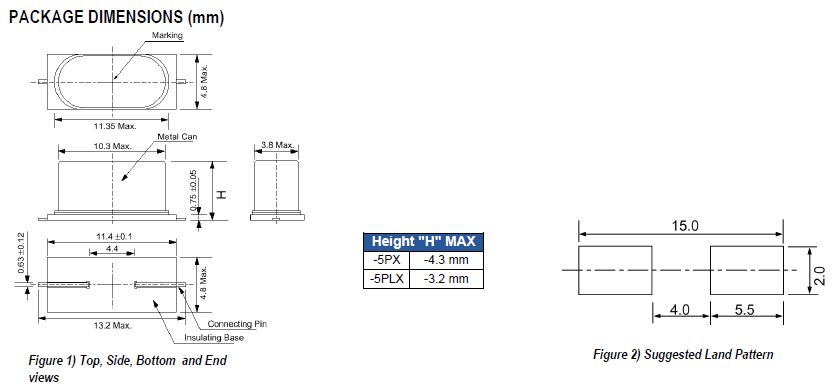

ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm尺寸圖

ECS原廠編碼	型號	頻率	頻率穩定度	頻率偏差	負載電容
ECS-100-18-5PX-TR	CSM-7X	10MHz	±50ppm	±30ppm	18pF
ECS-100-S-5PX-TR	CSM-7X	10MHz	±50ppm	±30ppm	Series
ECS-102.4-18-5PXEN	CSM-7X	10.24MHz	±50ppm	±30ppm	18pF
ECS-102.45-16-5PX-TR	CSM-7X	10.245MHz	±50ppm	±30ppm	16pF
ECS-110.5-18-5PXEN-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	18pF
ECS-110.5-20-5PX-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	20pF
ECS-110.5-32-5PX-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	32pF
ECS-110.5-S-5PX-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	Series
ECS-110-18-5PXEN-TR	CSM-7X	11MHz	±50ppm	±30ppm	18pF
ECS-115.2-18-5PXEN	CSM-7X	11.52MHz	±50ppm	±30ppm	18pF
ECS-120.003-18-5PXEN	CSM-7X	12.000393MHz	±50ppm	±30ppm	18pF
ECS-120-18-5PX-TR	CSM-7X	12MHz	±50ppm	±30ppm	18pF
ECS-120-32-5PX-TR	CSM-7X	12MHz	±50ppm	±30ppm	32pF
ECS-120-S-5PX-TR	CSM-7X	12MHz	±50ppm	±30ppm	Series
ECS-122.8-18-5PXEN-TR	CSM-7X	12.288MHz	±50ppm	±30ppm	18pF
ECS-122.8-20-5PX-TR	CSM-7X	12.288MHz	±50ppm	±30ppm	20pF
ECS-122.8-S-5PX-TR	CSM-7X	12.288MHz	±50ppm	±30ppm	Series
ECS-135.6-12-5PX-TR	CSM-7X	13.56MHz	±50ppm	±30ppm	12pF
ECS-135-18-5PXEN-TR	CSM-7X	13.5168MHz	±50ppm	±30ppm	18pF
ECS-143-18-5PXEN-TR	CSM-7X	14.31818MHz	±50ppm	±30ppm	18pF
ECS-143-20-5PX-TR	CSM-7X	14.31818MHz	±50ppm	±30ppm	20pF
ECS-143-S-5PX-TR	CSM-7X	14.31818MHz	±50ppm	±30ppm	Series
ECS-147.4-18-5PXEN-TR	CSM-7X	14.7456MHz	±50ppm	±30ppm	18pF
ECS-147.4-20-5PX-TR	CSM-7X	14.7456MHz	±50ppm	±30ppm	20pF
ECS-147.4-S-5PX-TR	CSM-7X	14.7456MHz	±50ppm	±30ppm	Series
ECS-150-18-5PXEN	CSM-7X	15MHz	±50ppm	±30ppm	18pF
ECS-150-S-5PX-TR	CSM-7X	15MHz	±50ppm	±30ppm	Series
ECS-160.003-18-5PXEN-TR	CSM-7X	16.000312MHz	±50ppm	±30ppm	18pF
ECS-160.003-18-5PX-TR	CSM-7X	16.000312MHz	±50ppm	±30ppm	18pF
ECS-160-18-5PXEN-TR	CSM-7X	16MHz	±50ppm	±30ppm	18pF
ECS-160-20-5PX-TR	CSM-7X	16MHz	±50ppm	±30ppm	20pF
ECS-160-S-5PX-TR	CSM-7X	16MHz	±50ppm	±30ppm	Series
ECS-162.57-18-5PXEN-TR	CSM-7X	16.257MHz	±50ppm	±30ppm	18pF
ECS-163-18-5PXEN-TR	CSM-7X	16.384MHz	±50ppm	±30ppm	18pF
ECS-177.3-18-5PXEN	CSM-7X	17.734475MHz	±50ppm	±30ppm	18pF
ECS-180-18-5PXEN	CSM-7X	18MHz	±50ppm	±30ppm	18pF
ECS-180-S-5PX-TR	CSM-7X	18MHz	±50ppm	±30ppm	Series
ECS-184-18-5PX-TR	CSM-7X	18.432MHz	±50ppm	±30ppm	18pF
ECS-184-20-5PX-TR	CSM-7X	18.432MHz	±50ppm	±30ppm	20pF
ECS-184-S-5PX-TR	CSM-7X	18.432MHz	±50ppm	±30ppm	Series
ECS-196.6-18-5PXEN-TR	CSM-7X	19.6608MHz	±50ppm	±30ppm	18pF
ECS-196.6-20-5PX-TR	CSM-7X	19.6608MHz	±50ppm	±30ppm	20pF
ECS-200-16-5PX-TR	CSM-7X	20MHz	±50ppm	±30ppm	16pF
ECS-200-18-5PXEN-TR	CSM-7X	20MHz	±50ppm	±30ppm	18pF
ECS-200-20-5PX-TR	CSM-7X	20MHz	±50ppm	±30ppm	20pF
ECS-200-S-5PX-TR	CSM-7X	20MHz	±50ppm	±30ppm	Series
ECS-204.8-20-5PX	CSM-7X	20.48MHz	±50ppm	±30ppm	20pF
ECS-221-18-5PXEN-TR	CSM-7X	22.1184MHz	±50ppm	±30ppm	18pF
ECS-240-12-5PX-TR	CSM-7X	24MHz	±50ppm	±30ppm	12pF
ECS-240-16-5PX-TR	CSM-7X	24MHz	±50ppm	±30ppm	16pF
ECS-240-18-5PXEN-TR	CSM-7X	24MHz	±50ppm	±30ppm	18pF
ECS-240-20-5PX-TR	CSM-7X	24MHz	±50ppm	±30ppm	20pF
ECS-245.7-18-5PXEN-TR	CSM-7X	24.576MHz	±50ppm	±30ppm	18pF
ECS-245.7-20-5PX-TR	CSM-7X	24.576MHz	±50ppm	±30ppm	20pF
ECS-250-18-5PX-F-TR	CSM-7X	25MHz	±50ppm	±30ppm	18pF
ECS-251.75-18-5PX-EN-TR	CSM-7X	25.175MHz	±50ppm	±30ppm	18pF
ECS-270-18-5PX-F-TR	CSM-7X	27MHz	±50ppm	±30ppm	18pF
ECS-286.3-18-5PX-F-EN-TR	CSM-7X	28.63636MHz	±50ppm	±30ppm	18pF
ECS-320-18-5PXEN	CSM-7X	32MHz	±50ppm	±30ppm	18pF
