- 規格型號：4208392
- 頻率：12.288MHz
- 尺寸：7.6×4.1mm
- 產品描述：美國伊西斯晶振,進口石英晶振,HC-49USX貼片晶振,ECS-122.8-20-3X-EN-TR無源晶振,工作溫度-40~85°C,負載20pf,精度30ppm,數碼相機晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振

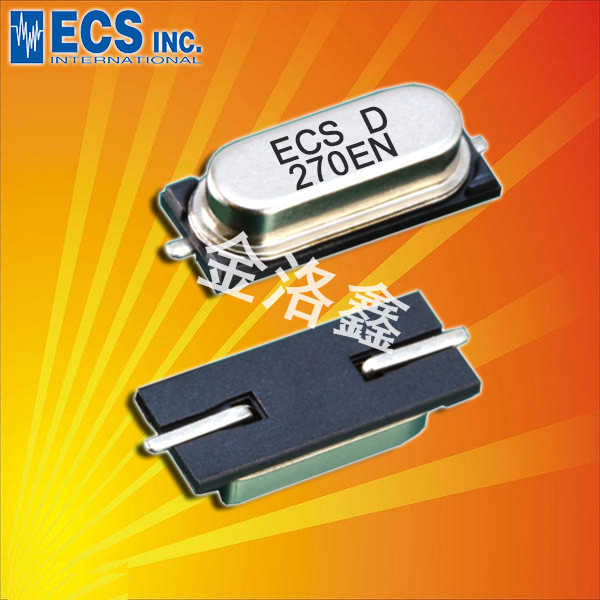

ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm
品說明.jpg)
ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm,美國伊西斯晶振,進口石英晶振,HC-49USX貼片晶振,ECS-122.8-20-3X-EN-TR無源晶振,工作溫度-40~85°C,負載20pf,精度30ppm,數碼相機晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振.

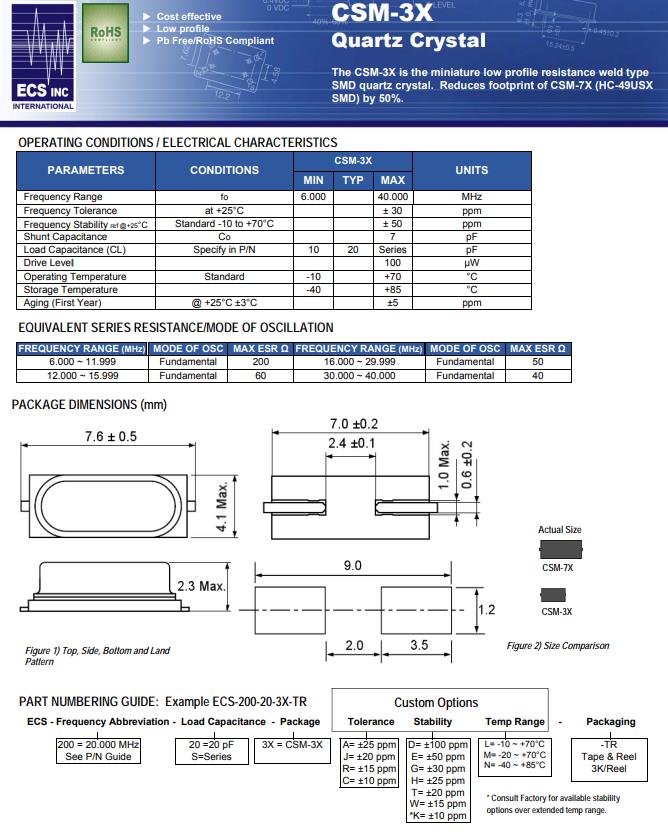

品規格參數圖.jpg)
ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm,參數圖
| 參數 | 條件 | CSM-3X |
| 頻率 | 12.288MHz | |
| 頻率公差 | at +25°C | ± 30PPM |
| 頻率穩定性 | -40°C to +85°C | ± 50PPM |
| 負載電容 | Specify in P/N | 20pF |
| 激勵功率 | 100 μW Max | |
| 工作溫度 | -10°C to +70°C | |
| 保存溫度 | -40°C to +85°C | |
| 并聯電容 |
Co
|
7.0 pF |
| 老化 | @ +25°C ±3°C | ±5ppm |
品尺寸圖.jpg)
ECS-122.8-20-3X-EN-TR/-40~85°C/20pf/30ppm尺寸圖
| ECS原廠編碼 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 |
| ECS-120-20-3X-EN-TR | CSM-3X | 12MHz | ±50ppm | ±30ppm | 20pF |
| ECS-120-20-3X-TR | CSM-3X | 12MHz | ±50ppm | ±30ppm | 20pF |
| ECS-122.8-20-3X-EN-TR | CSM-3X | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-122.8-20-3X-TR | CSM-3X | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-130-20-3X-EN-TR | CSM-3X | 13MHz | ±50ppm | ±30ppm | 20pF |
| ECS-130-20-3X-TR | CSM-3X | 13MHz | ±50ppm | ±30ppm | 20pF |
| ECS-135.6-20-3X-EN-TR | CSM-3X | 13.56MHz | ±50ppm | ±30ppm | 20pF |
| ECS-135.6-20-3X-TR | CSM-3X | 13.56MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-20-3X-EN-TR | CSM-3X | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-20-3X-TR | CSM-3X | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-20-3X-EN-TR | CSM-3X | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-20-3X-TR | CSM-3X | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-20-3X-EN-TR | CSM-3X | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-20-3X-TR | CSM-3X | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-184-20-3X-EN-TR | CSM-3X | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-184-20-3X-TR | CSM-3X | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-196.6-20-3X-EN-TR | CSM-3X | 19.6608MHz | ±50ppm | ±30ppm | 20pF |
| ECS-196.6-20-3X-TR | CSM-3X | 19.6608MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-20-3X-EN-TR | CSM-3X | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-20-3X-TR | CSM-3X | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-CDX-0914 | CSM-3X | 20MHz | ±30ppm | ±10ppm | 10pF |
| ECS-245.7-20-3X-EN-TR | CSM-3X | 24.576MHz | ±50ppm | ±30ppm | 20pF |
| ECS-245.7-20-3X-TR | CSM-3X | 24.576MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-20-3X-EN-TR | CSM-3X | 25MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-20-3X-TR | CSM-3X | 25MHz | ±50ppm | ±30ppm | 20pF |
| ECS-270-20-3X-EN-TR | CSM-3X | 27MHz | ±50ppm | ±30ppm | 20pF |
| ECS-270-20-3X-TR | CSM-3X | 27MHz | ±50ppm | ±30ppm | 20pF |
| ECS-286.3-20-3X-EN-TR | CSM-3X | 28.63636MHz | ±50ppm | ±30ppm | 20pF |
| ECS-286.3-20-3X-TR | CSM-3X | 28.63636MHz | ±50ppm | ±30ppm | 20pF |
| ECS-300-20-3X-EN-TR | CSM-3X | 30MHz | ±50ppm | ±30ppm | 20pF |
| ECS-300-20-3X-TR | CSM-3X | 30MHz | ±50ppm | ±30ppm | 20pF |
| ECS-330-20-3X-EN-TR | CSM-3X | 33MHz | ±50ppm | ±30ppm | 20pF |
| ECS-330-20-3X-TR | CSM-3X | 33MHz | ±50ppm | ±30ppm | 20pF |
| ECS-400-20-3X-EN-TR | CSM-3X | 40MHz | ±50ppm | ±30ppm | 20pF |
| ECS-400-20-3X-TR | CSM-3X | 40MHz | ±50ppm | ±30ppm | 20pF |
