- 規格型號：3534223
- 頻率：26 MHz
- 尺寸：2520MM
- 產品描述：1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振,依托小型化,高精度特性,該晶振在多領域實現精準適配,在消費電子領域,用于5G智能手機的毫米波通信模塊,平板電腦的GPS定位單元,保障通信與定位的實時性.

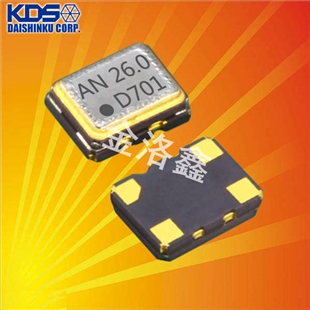

1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
.png)
.png)

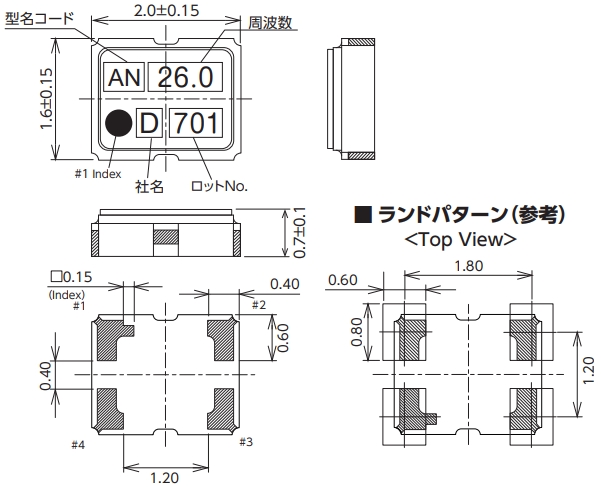

1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
作為日本大真空原廠出品的晶振,1XXB26000MAA晶振采用的2520貼片晶振封裝,在小型化設備中展現出顯著優勢,其一,超小體積設計,相較于傳統3225封裝晶振,體積縮減約30%,可直接集成于智能手機射頻模塊,智能穿戴設備主板等緊湊空間,滿足設備輕薄化設計需求,其二,貼片式結構,支持SMT自動化貼片工藝,適配大規模量產生產線,提升設備組裝效率,降低人工成本,其三,穩定的機械結構,封裝外殼采用高強度陶瓷材質,引腳與封裝一體化設計,能減少振動對內部晶片的影響,提升產品抗機械沖擊能力.
.png)
.png)

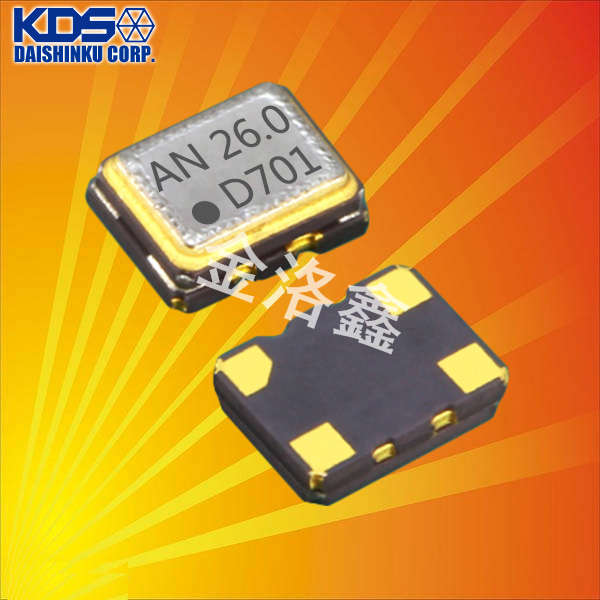

1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
| Original model 原廠編碼 | 1XXB26000MAA |
| Manufacturer 品牌 | KDS晶振 |
| Part Series 型號 | DSB221SDN |
| Type 類型 | TCXO |
| Frequency 頻率 | 26MHz |
| Output Type 輸出方式 | 正弦波輸出 |
| Supply Voltage 電壓 | 1.8V~2.8V |
| Frequency Stability 頻率穩定性 | ±1.5ppm |
| Operating Temperature 工作溫度 | -40° / +85°C |
| Package Size 包裝尺寸 | 2520mm |
| Package Height 厚度 | - |
| Termination 腳位 | 4 pads |
| Package Type 封裝類型 | 4-SMD |
| Lead Free 無鉛 | Yes |
| Mounting Style 安裝方式 | Surface Mount |
| Packaging 包裝 | Tape and Reel |
.png)
.png)
1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
.png)
.png)
1XXB26000MAA,日本大真空晶振,2520溫補貼片晶振
| 12.87000 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87001 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87002 | KX-327V | 1.25 | 1.05 | 0.5 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87034 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 4 pF | ± 20 ppm |
| 12.87080 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87081 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87083 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87086 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87090 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87095 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87105 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 10 ppm |
| 12.87107 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87109 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12 pF | ± 15 ppm |
| 12.87110 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87111 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87112 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87113 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87114 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87115 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87116 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87118 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87119 | KX-327S | 8.2 | 3.8 | 2.5 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87120 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87121 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87123 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87126 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87127 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 30 ppm |
| 12.87128 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 6 pF | ± 20 ppm |
| 12.87129 | KX-327XS | 4.95 | 1.82 | 0.96 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87130 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87131 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87132 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87133 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87134 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87135 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87136 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87137 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87138 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87139 | KX-327L | 7.0 | 1.5 | 1.4 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87143 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87144 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 5.0 ppm |
| 12.87145 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87146 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 10 ppm |
| 12.87147 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 10 ppm |
| 12.87148 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87149 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87150 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87151 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87152 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87153 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87155 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 30 ppm |
| 12.87157 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87158 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 10 ppm |
| 12.87159 | KX-327NH | 3.2 | 1.5 | 0.8 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87160 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
| 12.87161 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 5.0 ppm |
| 12.87163 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 7 pF | ± 20 ppm |
| 12.87164 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 30 ppm |
| 12.87165 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 9 pF | ± 20 ppm |
| 12.87166 | KX-327R | 2.0 | 1.2 | 0.6 mm | 32.768 kHz | 12.5 pF | ± 20 ppm |
