- 規格型號：82982962
- 頻率：32.768kHz
- 尺寸：2x6mm
- 產品描述：CFS-20632768DZFB|CFS-206圓柱晶振|Citizen西鐵城晶振|插件晶振,頻率32.768khz,無源石英晶振,石英插件晶振,精度±10ppm,負載12.5pF,溫度-20°C~70°C,可輕松適配傳統穿孔式PCB板,無需復雜的貼裝工藝,降低了中小批量生...

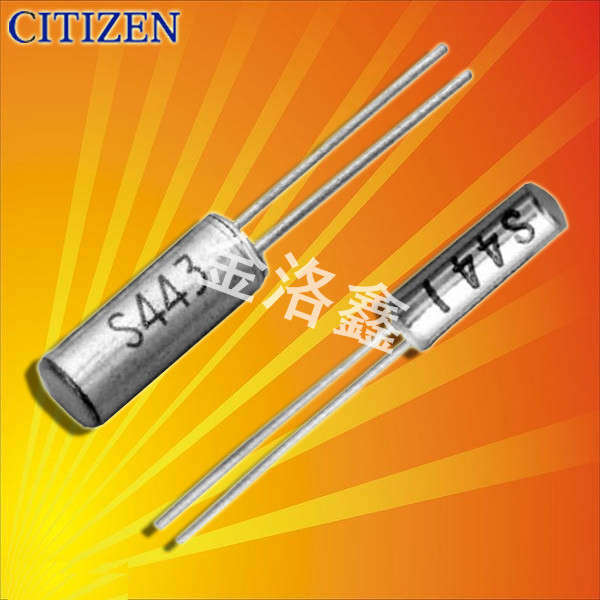

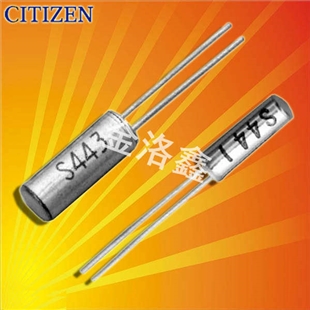

CFS-20632768DZFB|CFS-206圓柱晶振|Citizen西鐵城晶振|插件晶振
.png)
.png)
CFS-20632768DZFB|CFS-206圓柱晶振|Citizen西鐵城晶振|插件晶振
CFS-20632768DZFB采用經典圓柱插件晶振封裝設計,區別于貼片晶振,其引腳為直插式結構,可直接適配穿孔式PCB板,無需依賴自動化貼裝設備,尤其適合中小批量生產,手工組裝或傳統電子設備的升級改造場景.圓柱型封裝外殼采用高強度玻璃或金屬材質,不僅能有效隔絕外部灰塵,濕度等環境因素對晶體的侵蝕,還能提升元件的抗機械沖擊能力,在設備運輸,安裝及日常使用中,減少因碰撞導致的晶體損壞風險.同時,插件式設計簡化了后期維修更換流程,當設備出現晶振故障時,維修人員通過常規電烙鐵即可完成拆卸與更換,無需專業貼片返修設備,大幅降低了設備維護成本與時間成本.
.png)
.png)
CFS-20632768DZFB|CFS-206圓柱晶振|Citizen西鐵城晶振|插件晶振
| 原廠型號 Original model ： | CFS-20632768DZFB | 品牌 brand ： | Citizen |
| 品牌 brand ： | Citizen晶體諧振器 | ESR（等效串聯電阻） Resistance) | - |
| 型號名稱 Model name： | CFS-206 | 溫度 Operating Temperature | -20°C ~ 70°C |
| Type 系列： | kHz Crystal | 腳位 Termination： | 2 pad |
| 頻率 frequency ： | 32.768 kHz | 封裝類型 Package Type： | 2-soj |
| Frequency Stability頻率穩定度 | - | 高度 Package Height： | 6mm |
| frequency tolerance頻率容差 | ±20ppm | 最小包裝數 MPQ ： | - |
| Load capacitance 負載電容 | 12.5pF | 包裝 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 2mm x 6mm | 安裝方式 Mounting Style： | Surface Mount |
.png)
.png)
CFS-20632768DZFB|CFS-206圓柱晶振|Citizen西鐵城晶振|插件晶振
.png)
.png)
CFS-20632768DZFB|CFS-206圓柱晶振|Citizen西鐵城晶振|插件晶振
| HCM494000000ABJT | Citizen | HCM49 | 4 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4910000000ABJT | Citizen | HCM49 | 10 MHz | ±50ppm | ±30ppm | 18pF |
| HCM498000000ABJT | Citizen | HCM49 | 8 MHz | ±50ppm | ±30ppm | 18pF |
| CM315D32768DZFT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM315D32768DZBT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 6pF |
| CM315D32768DZCT | Citizen | CM315D | 32.768 kHz | - | ±20ppm | 9pF |
| CM315D32768HZFT | Citizen | CM315D | 32.768 kHz | - | ±5ppm | 12.5pF |
| CM315D32768EZFT | Citizen | CM315D | 32.768 kHz | - | ±10ppm | 12.5pF |
| CFS-20632768EZBB | Citizen | CFS-206 | 32.768 kHz | - | ±10ppm | 6pF |
| CS325S24000000ABJT | Citizen | CS325S | 24 MHz | ±50ppm | ±30ppm | 18pF |
| CS325S25000000ABJT | Citizen | CS325S | 25 MHz | ±50ppm | ±30ppm | 18pF |
| CFS-20632768HZFB | Citizen | CFS-206 | 32.768 kHz | - | ±5ppm | 12.5pF |
| CM41532768DZFT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM41532768DZCT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 9pF |
| CM41532768DZYT | Citizen | CM415 | 32.768 kHz | - | ±20ppm | 7pF |
| CFS-14532768DZFB | Citizen | CFS145 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CM315H32768DZFT | Citizen | CM315H | 32.768 kHz | - | ±20ppm | 12.5pF |
| CFS-20632768DZFB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 12.5pF |
| CFS-20632768DZYB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 7pF |
| CFS-20632768DZCB | Citizen | CFS-206 | 32.768 kHz | - | ±20ppm | 9pF |
| CM315H32768DZBT | Citizen | CM315H | 32.768 kHz | - | ±20ppm | 6pF |
| CM315H32768EZFT | Citizen | CM315H | 32.768 kHz | - | - | 12.5pF |
| CMR200T32768DZFT | Citizen | CMR200T | 32.768 kHz | - | ±20ppm | 12.5pF |
| HCM4912000000ABJT | Citizen | HCM49 | 12 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4925000000ABJT | Citizen | HCM49 | 25 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4920000000ABJT | Citizen | HCM49 | 20 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4924000000ABJT | Citizen | HCM49 | 24 MHz | ±50ppm | ±30ppm | 18pF |
| HCM497372800ABJT | Citizen | HCM49 | 7.3728 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4918432000ABJT | Citizen | HCM49 | 18.432 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494915200ABJT | Citizen | HCM49 | 4.9152 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4914745600ABJT | Citizen | HCM49 | 14.7456 MHz | ±50ppm | ±30ppm | 18pF |
| HCM493686400ABJT | Citizen | HCM49 | 3.6864 MHz | ±50ppm | ±30ppm | 18pF |
| HCM496000000ABJT | Citizen | HCM49 | 6 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4911059200ABJT | Citizen | HCM49 | 11.0592 MHz | ±50ppm | ±30ppm | 18pF |
| HCM497680000ABJT | Citizen | HCM49 | 7.68 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494194304ABJT | Citizen | HCM49 | 4.194304 MHz | ±50ppm | ±30ppm | 18pF |
| HCM494032000ABJT | Citizen | HCM49 | 4.032 MHz | ±50ppm | ±30ppm | 18pF |
| HCM4922118400ABJT | Citizen | HCM49 | 22.1184 MHz | ±50ppm | ±30ppm | 18pF |
| CM200C32768DZCT | Citizen | CM200C | 32.768 kHz | - | ±20ppm | 9pF |
| CFS-20632768EZFB | Citizen | CFS-206 | 32.768 kHz | - | ±10ppm | 12.5pF |
| CM315DL32768EZFT | Citizen | CM315DL | 32.768 kHz | - | ±10ppm | 12.5pF |
| CM315E32768DZBT | Citizen | CM315E | 32.768 kHz | - | ±20ppm | 6pF |
| CS325S16000000ABJT | Citizen | CS325S | 16 MHz | ±50ppm | ±30ppm | 18pF |
| CS325S27000000ABJT | Citizen | CS325S | 27 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S10000000ABJB | Citizen | HC49US | 10 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S11059200ABJB | Citizen | HC49US | 11.0592 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S7372800ABJB | Citizen | HC49US | 7.3728 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S24576000ABJB | Citizen | HC49US | 24.576 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S22118400ABJB | Citizen | HC49US | 22.1184 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S24000000ABJB | Citizen | HC49US | 24 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S25000000ABJB | Citizen | HC49US | 25 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S20000000ABJB | Citizen | HC49US | 20 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S4000000ABJB | Citizen | HC49US | 4 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S9216000ABJB | Citizen | HC49US | 9.216 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S8000000ABJB | Citizen | HC49US | 8 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S16000000ABJB | Citizen | HC49US | 16 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S18432000ABJB | Citizen | HC49US | 18.432 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S12000000ABJB | Citizen | HC49US | 12 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S14745600ABJB | Citizen | HC49US | 14.7456 MHz | ±50ppm | ±30ppm | 18pF |
| HC-49/U-S7680000ABJB | Citizen | HC49US | 7.68 MHz | ±50ppm | ±30ppm | 18pF |
