- 規格型號：30267235
- 頻率：24.576 MHz
- 尺寸：5032mm
- 產品描述：XNCLH24M576CHJA9P0|TCXO溫補有源晶振|3.3V低抖動晶振|衛星通信晶振,具備極強的適配性:從功能適配來看,其高頻率穩定性與低抖動特性,可滿足衛星接收模塊,衛星導航終端

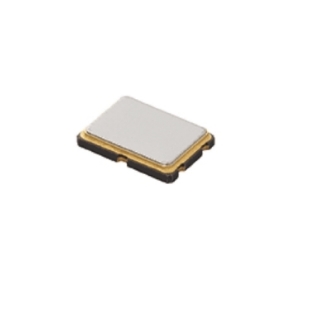

XNCLH24M576CHJA9P0|TCXO溫補有源晶振|3.3V低抖動晶振|衛星通信晶振
.png)
.png)
XNCLH24M576CHJA9P0|TCXO溫補有源晶振|3.3V低抖動晶振|衛星通信晶振
"TCXO溫補"是該晶振的核心技術亮點,通過內置溫度補償電路與精密控制算法,實現對頻率的動態校準:首先,溫度適應范圍極寬,可穩定工作于-40℃至+85℃甚至更嚴苛的溫度區間(具體以規格書為準),完全覆蓋衛星通信設備在戶外,高空等極端溫度場景下的使用需求,避免因環境溫度驟變導致的頻率漂移,其次,頻率穩定精度極高,常溫下頻率容差可控制在±0.1ppm-±1ppm(具體以規格書為準),溫度漂移系數低至±0.01ppm/℃級別,遠優于無源晶振與普通有源晶振,能有效減少衛星通信中的信號誤碼率,確保遠距離數據傳輸?shù)臏?zhǔn)確性,此外,溫補響應速度快,可實時監測環境溫度變化并快速調整頻率,即使在溫度波動頻繁的場景中,仍能保持時鐘信號的持續穩定.
.png)
.png)
XNCLH24M576CHJA9P0|TCXO溫補有源晶振|3.3V低抖動晶振|衛星通信晶振
| 原廠型號 Originalmodel： | XNCLH24M576CHJA9P0 | 品牌brand： | Murata村田晶振 |
| Manufacturer品牌 | Murata村田晶振 | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | XNCLH石英晶體振蕩器 | Current-Supply(Max) | 3.5mA |
| Type類型 | TCXO | PackageHeight高度 | 1.50mm |
| Frequency頻率 | 24.576 MHz | Termination 腳位 | 8pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 8-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±280ppb | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 5.00mm x 3.20mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
XNCLH24M576CHJA9P0|TCXO溫補有源晶振|3.3V低抖動晶振|衛星通信晶振
.png)
XNCLH24M576CHJA9P0|TCXO溫補有源晶振|3.3V低抖動晶振|衛星通信晶振
| XRCGB25M000F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB27M120F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB32M000F1H01R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| XRCGB32M000F1H00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 6pF |
| XRCGB25M000F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±35ppm | ±35ppm | 6pF |
| XRCGB24M000F0L00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB48M000F4M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 48 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB24M000F3N00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 6pF |
| XRCGB27M120F3M10R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 10pF |
| XRCGB25M000F3M18R0 | Murata村田晶振 | - | MHz Crystal | 25 MHz | ±40ppm | ±30ppm | 12pF |
| XRCGB32M000F2P01R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB32M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB25M000F2P02R0 | Murata村田晶振 | - | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB27M120F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB25M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB24M000F2P01R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB27M120F3M13R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 10pF |
| XRCGB32M000F2P2CR0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB32M000FBH50R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±15ppm | 10pF |
| XRCGB24M000F2P91R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB16M000FXN00R0 | Murata村田晶振 | - | MHz Crystal | 16 MHz | ±40ppm | ±40ppm | 6pF |
| XRCGB32M000F1H02R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 10pF |
| XRCGB32M000F1H19R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 6pF |
| XRCGB40M000F5A00R0 | Murata村田晶振 | - | MHz Crystal | 40 MHz | ±65ppm | ±50ppm | 6pF |
| XRCGB24M000F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGB27M120F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGB25M000F3A01R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±35ppm | ±30ppm | 8pF |
| XRCGB48M000F5A00R0 | Murata村田晶振 | - | MHz Crystal | 48 MHz | ±65ppm | ±50ppm | 6pF |
| XRCGE25M000FBA1AR0 | Murata村田晶振 | XRCFD | MHz Crystal | 25 MHz | ±35ppm | ±15ppm | 6pF |
| XRCHA20M000F0A01R0 | Murata村田晶振 | XRCHA | MHz Crystal | 20 MHz | ±100ppm | ±100ppm | 8pF |
| XRCGB27M120F0L00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB32M000F0L00R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB24M000FAN00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±25ppm | 6pF |
| XRCGB38M400F4M00R0 | Murata村田晶振 | - | MHz Crystal | 38.4 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB50M000F4M00R0 | Murata村田晶振 | - | MHz Crystal | 50 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB32M000F3M00R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F3M13R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB32M000F2P02R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB30M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 30 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB27M120F2P02R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB32M000F2P26R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 5pF |
| XRCGB31M250F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 31.25 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB27M120F3G00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±50ppm | ±30ppm | 6pF |
| XRCGB16M000FXN22R0 | Murata村田晶振 | XRCGB | MHz Crystal | 16 MHz | ±40ppm | ±40ppm | 8pF |
| XRCGB27M600F2C00R0 | Murata村田晶振 | - | MHz Crystal | 27.6 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB24M000F1H01R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 8pF |
| XRCGB26M000F1H02R0 | Murata村田晶振 | - | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 10pF |
| XRCGB24M000F1H70R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±20ppm | ±10ppm | 6pF |
| XRCGB32M000F1H83R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 9pF |
| XRCGE27M000FBA1AR0 | Murata村田晶振 | XRCGE | MHz Crystal | 27 MHz | ±35ppm | ±15ppm | 6pF |
| XRCGB26M000F3A00R0 | Murata村田晶振 | - | MHz Crystal | 26 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGE26M000FBA1BR0 | Murata村田晶振 | XRCGE | MHz Crystal | 26 MHz | ±35ppm | ±15ppm | 8pF |
| XRCGE20M000F3A1AR0 | Murata村田晶振 | XRCFD | MHz Crystal | 20 MHz | ±45ppm | ±30ppm | 6pF |
| XRCGB24M000F2A01R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±35ppm | ±20ppm | 8pF |
| XRCGB27M120F3P00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±20ppm | ±30ppm | 6pF |
| XRCGB32M000F2P55R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 6pF |
| XRCPB26M000F2P00R0 | Murata村田晶振 | XRCPB | MHz Crystal | 26 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB32M000F1H18R0 | Murata村田晶振 | XRCFD | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 9pF |
