- 規格型號：57183394
- 頻率：24.54545MHz
- 尺寸：3225mm
- 產品描述：X3S02454FFK1H-Z晶振,臺灣加高3225晶體,物聯網終端晶振，臺灣加高晶振公司，HELE晶振，高品質晶振，SMD晶振，石英晶振，HSX321SL晶振，X3S02454FFK1H-Z晶振，無源晶振，貼片晶振，高精度晶振，6G通訊設備晶振，無線傳...

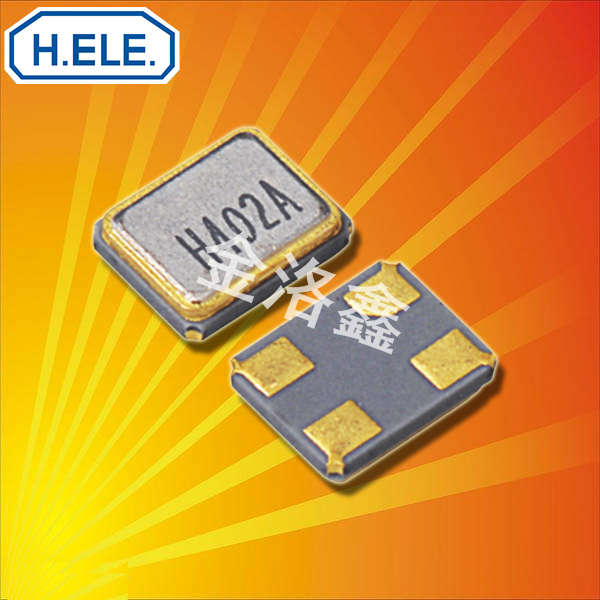

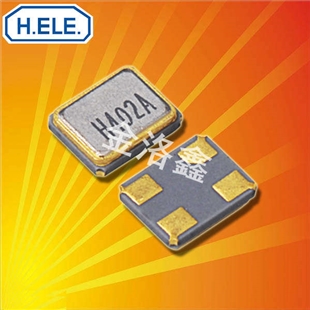

X3S02454FFK1H-Z晶振,臺灣加高3225晶體,物聯網終端晶振
品說明.jpg)
X3S02454FFK1H-Z晶振,臺灣加高3225晶體,物聯網終端晶振，臺灣加高晶振公司，HELE晶振，高品質晶振，SMD晶振，石英晶振，HSX321SL晶振，X3S02454FFK1H-Z晶振，無源晶振，貼片晶振，高精度晶振，6G通訊設備晶振，無線傳輸晶振，局域網晶振，3225晶振，小體積晶振，低損耗晶振 ，北斗衛星定位模塊晶振，6G無線網晶振，高精度晶振。特點：微型超薄SMD產品尺寸（3.2×2.5×0.55 max）。高精度、可靠性高，耐熱性好。針對射頻應用、無線模塊設備、RFID應用和其他基于消費者的產品的優化解決方案。
品規格參數圖.jpg)
| 頻率范圍 | 12~16MHz | 16~32MHz | 32~54MHz |
| 工作模式 | Fundamental | ||
| 頻率容差 |
±10ppm
|
||
| 負載電容 | 7pF Min. | ||
| 驅動電平 | 10μW (300μW Max.) | ||
| 等效串聯電子 | 80Ω Max. | 50Ω Max. | 40Ω Max. |
| 儲存溫度范圍 | -55 ~ +125 C | ||
品尺寸圖.jpg)
X3S02454FFK1H-Z晶振,臺灣加高3225晶體,物聯網終端晶振
| 原廠編碼 | 生產商 | 型號 | 頻率 | 頻率容差 | 負載電容 | 工作溫度 |
| X3S027000BA1H-U | 加高晶振 | HSX321S | 27 MHz | ±10ppm | 10pF | -30°C ~ 85°C |
| X3S024000B91H-HS | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 9pF | - |
| X3S027120BA1H-X | 加高晶振 | HSX321S | 27.12 MHz | ±10ppm | 10pF | -40°C ~ 105°C |
| X3S032000BC1HA-CHPZ | 加高晶振 | HSX321S | 32 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
| X3S016000DI1H-HW | 加高晶振 | HSX321S | 16 MHz | ±20ppm | 18pF | -40°C ~ 105°C |
| X3S012000FI1H-HV | 加高晶振 | HSX321S | 12 MHz | ±30ppm | 18pF | -40°C ~ 125°C |
| X3S025000D81H-HU | 加高晶振 | HSX321S | 25 MHz | ±20ppm | 8pF | -40°C ~ 105°C |
| X3S026000B91H-NZ | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
| X3S008000FA1H-X | 加高晶振 | HSX321S | 8 MHz | ±50ppm | 10pF | -40°C ~ 85°C |
| X3S008000BK1H-U | 加高晶振 | HSX321S | 8 MHz | ±10ppm | 20pF | -20°C ~ 70°C |
| X3S010000BK1H-X | 加高晶振 | HSX321S | 10 MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| X3S011059BA1H-V | 加高晶振 | HSX321S | 11.0592 MHz | ±20ppm | 10pF | -20°C ~ 75°C |
| X3S011059DK1H | 加高晶振 | HSX321S | 11.0592 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S011059FK1H-V | 加高晶振 | HSX321S | 11.0592 MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| X3S012800DF1H-V | 加高晶振 | HSX321S | 12.8 MHz | ±20ppm | 15pF | -20°C ~ 75°C |
| X3S012000BA1HA-X | 加高晶振 | HSX321S | 12 MHz | ±50ppm | 10pF | -40°C ~ 85°C |
| X3S012000BA1H-HU | 加高晶振 | HSX321S | 12 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| X3S012000BC1H-HV | 加高晶振 | HSX321S | 12 MHz | ±20ppm | 12pF | -20°C ~ 75°C |
| X3S012000DC1H-V | 加高晶振 | HSX321S | 12 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| X3Z012000DC1H-V | 加高晶振 | HSX321S | 12 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| X3S012000DG1H-H | 加高晶振 | HSX321S | 12 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| X3S012000BI1H-R | 加高晶振 | HSX321S | 12 MHz | ±10ppm | 18pF | -20°C ~ 75°C |
| X3S012000BK1H | 加高晶振 | HSX321S | 12 MHz | ±20ppm | 20pF | -10°C ~ 60°C |
| X3S012000DK1H | 加高晶振 | HSX321S | 12 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S012000DK1HA-X | 加高晶振 | HSX321S | 12 MHz | ±50ppm | 20pF | -40°C ~ 85°C |
| X3S012000FK1H-HV | 加高晶振 | HSX321S | 12 MHz | ±30ppm | 20pF | -30°C ~ 85°C |
| X3S013560DA1H-HU | 加高晶振 | HSX321S | 13.56 MHz | ±20ppm | 10pF | -30°C ~ 85°C |
| X3S013560BK1H-V | 加高晶振 | HSX321S | 13.56 MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| X3S013000BA1HA-U | 加高晶振 | HSX321S | 13 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| X3S013000BA1H-V | 加高晶振 | HSX321S | 13 MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| X3S01431AFK1H | 加高晶振 | HSX321S | 14.31818 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S016000B81H-DHU | 加高晶振 | HSX321S | 16 MHz | ±20ppm | 8pF | -30°C ~ 90°C |
| X3S016000B91H-X | 加高晶振 | HSX321S | 16 MHz | ±20ppm | 9pF | -30°C ~ 85°C |
| X3S016000BC1H-V | 加高晶振 | HSX321S | 16 MHz | ±10ppm | 12pF | -10°C ~ 60°C |
| X3S016000DC1H-U | 加高晶振 | HSX321S | 16 MHz | ±20ppm | 12pF | -40°C ~ 85°C |
| X3S016000DC1H‐V | 加高晶振 | HSX321S | 16 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| X3S019200BZ1H-CHZ | 加高晶振 | HSX321S | 19.2 MHz | ±12ppm | 7pF | -30°C ~ 85°C |
| X3S020000BA1H-V | 加高晶振 | HSX321S | 20 MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| X3S020000BF1HA‐V | 加高晶振 | HSX321S | 20 MHz | ±30ppm | 15pF | -40°C ~ 85°C |
| X3S020000BI1H-HZ | 加高晶振 | HSX321S | 20 MHz | ±10ppm | 18pF | -30°C ~ 85°C |
| X3S024000D81H-X | 加高晶振 | HSX321S | 24 MHz | ±30ppm | 8pF | -20°C ~ 70°C |
| X3S024000B91HA-R | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 9pF | -20°C ~ 75°C |
| X3S024000B91H-DEPV | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 9pF | -10°C ~ 60°C |
| X3S024000B91H-V | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 9pF | -10°C ~ 60°C |
| X3S024000BA1H-V | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| X3S024000BC1HA-V | 加高晶振 | HSX321S | 24 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| X3S024000DC1H | 加高晶振 | HSX321S | 24 MHz | ±30ppm | 12pF | -10°C ~ 60°C |
| X3S024000DC1H-X | 加高晶振 | HSX321S | 24 MHz | ±20ppm | 12pF | -10°C ~ 60°C |
| X3S024000BG1HA-Z | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 16pF | -30°C ~ 85°C |
| X3S024000BK1H | 加高晶振 | HSX321S | 24 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S024000BK1H-V | 加高晶振 | HSX321S | 24 MHz | ±20ppm | 20pF | -20°C ~ 75°C |
| X3S024000BK1H-Z | 加高晶振 | HSX321S | 24 MHz | ±10ppm | 20pF | -30°C ~ 85°C |
| X3S025000BA1H-U | 加高晶振 | HSX321S | 25 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| X3S025000BA1H-R | 加高晶振 | HSX321S | 25 MHz | ±10ppm | 12pF | -20°C ~ 75°C |
| X3S025000DC1H-U | 加高晶振 | HSX321S | 25 MHz | ±20ppm | 12pF | -20°C ~ 70°C |
| X3S025000FC1H-HV | 加高晶振 | HSX321S | 25 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| X3S025000BK1H | 加高晶振 | HSX321S | 25 MHz | ±20ppm | 20pF | -30°C ~ 85°C |
| X3S026000B71HZ-HPR | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 7.2pF | -20°C ~ 75°C |
| X3S026000B71HA-R | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 7.5pF | -20°C ~ 75°C |
| X3S026000B71HZ-NCHPR | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 7.9pF | -20°C ~ 75°C |
| X3S026000B81H-NCHZ | 加高晶振 | HSX321S | 26 MHz | ±11ppm | 8pF | -30°C ~ 85°C |
| X3S026000B91H-NZ | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
| X3S026000B71HZ-NHPZ | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 10.9pF | -20°C ~ 85°C |
| X3S026000BC1H-NR | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 12pF | -20°C ~ 75°C |
| X3S026000BZ1HZ-HU | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 12pF | -20°C ~ 70°C |
| X3S026000BG1S-HU | 加高晶振 | HSX321S | 26 MHz | ±10ppm | 16pF | -20°C ~ 70°C |
| X3S027120BA1H-X | 加高晶振 | HSX321S | 27.12 MHz | ±20ppm | 10pF | -10°C ~ 60°C |
| X3S027120DC1H-V | 加高晶振 | HSX321S | 27.12 MHz | ±30ppm | 12pF | -30°C ~ 85°C |
| X3S027000BA1H-U | 加高晶振 | HSX321S | 27 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| X3S027000BA1H-X | 加高晶振 | HSX321S | 27 MHz | ±50ppm | 10pF | -30°C ~ 90°C |
| X3S027000FC1H-V | 加高晶振 | HSX321S | 27 MHz | ±30ppm | 12pF | -30°C ~ 85°C |
| X3S027000BK1H | 加高晶振 | HSX321S | 27 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S027000BK1HA-Z | 加高晶振 | HSX321S | 27 MHz | ±10ppm | 20pF | -30°C ~ 85°C |
| X3S027000BK1H-V | 加高晶振 | HSX321S | 27 MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| X3S027000DK1H-V | 加高晶振 | HSX321S | 27 MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| X3S028375DK1H | 加高晶振 | HSX321S | 28.375 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S02863ADA1H-W | 加高晶振 | HSX321S | 28.6363 MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| X3S030000BA1H-S | 加高晶振 | HSX321S | 30 MHz | ±15ppm | 10pF | -40°C ~ 85°C |
| X3S030000BA1H-U | 加高晶振 | HSX321S | 30 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| X3S030000BA1H-V | 加高晶振 | HSX321S | 30 MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| X3S030000BK1H | 加高晶振 | HSX321S | 30 MHz | ±30ppm | 20pF | -10°C ~ 60°C |
| X3S032000B91H‐HU | 加高晶振 | HSX321S | 32 MHz | ±20ppm | 9pF | -40°C ~ 85°C |
| X3S032000BA1H-R | 加高晶振 | HSX321S | 32 MHz | ±10ppm | 10pF | -20°C ~ 75°C |
| X3S032000BC1HZ-NU | 加高晶振 | HSX321S | 32 MHz | ±10ppm | 12pF | -20°C ~ 70°C |
| X3S032000BG1H-Z_C254275 | 加高晶振 | HSX321S | 32 MHz | ±10ppm | 16pF | -30°C ~ 85°C |
| X3S032000LK1H-Z | 加高晶振 | HSX321S | 32 MHz | ±12ppm | 20pF | -30°C ~ 85°C |
| X3S036000BG1H-V_C254283 | 加高晶振 | HSX321S | 36 MHz | ±30ppm | 12pF | -20°C ~ 80°C |
| X3S037400B91H-Z | 加高晶振 | HSX321S | 37.4 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
| X3S037400BA1H-Z | 加高晶振 | HSX321S | 37.4 MHz | ±10ppm | 10pF | -30°C ~ 85°C |
| X3S038400B91H-HU | 加高晶振 | HSX321S | 38.4 MHz | ±15ppm | 9pF | -20°C ~ 80°C |
