- 規格型號：69235743
- 頻率：8.000MHz
- 尺寸：13.5×4.8mm
- 產品描述：美國進口石英晶體,AS-8.000-30-3030-SMD-TR晶振,頻率8.000MHz,Raltron晶振,負載30pf,AS-SMD無源晶振,時鐘信號源晶振,儲存卡晶振,電腦顯示屏晶振,攝像頭晶振.

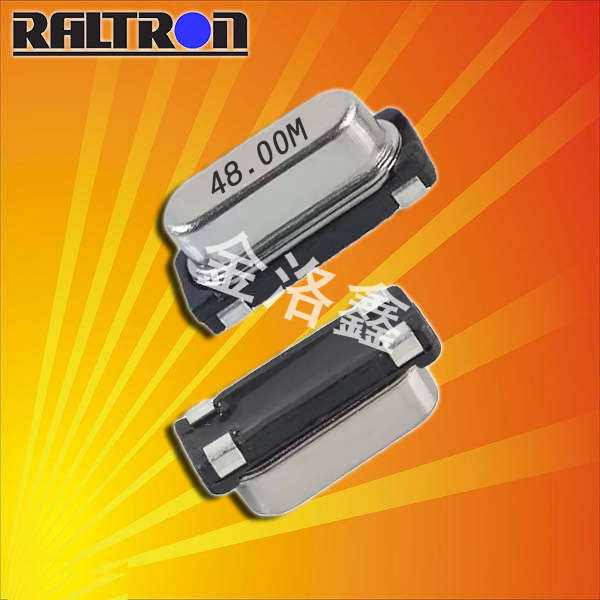

AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf
品說明.jpg)
AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf,Raltron晶振,美國進口石英晶體,AS-8.000-30-3030-SMD-TR晶振,頻率8.000MHz,負載30pf,AS-SMD無源晶振,時鐘信號源晶振,儲存卡晶振,電腦顯示屏晶振,攝像頭晶振.
品規格參數圖.jpg)

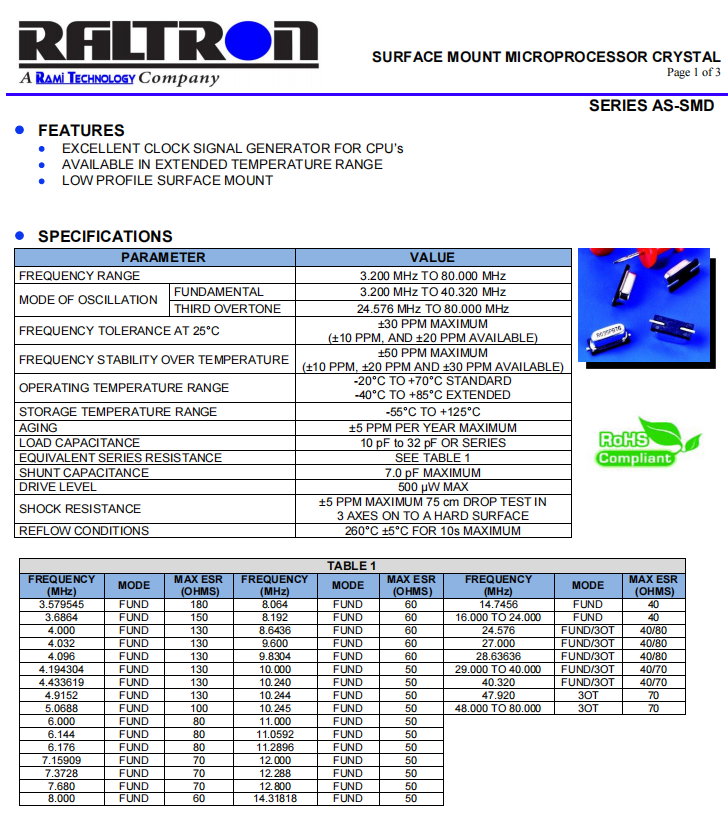

AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf,參數圖
| 規格參數 | 數值 | ||
| 頻率 | 8MHz | ||
| 頻率公差 (at +25°C) | ± 30PPM | ||
| 溫度范圍內的頻率穩定性 | ± 30PPM | ||
| 工作溫度 | -20°C to +70°C | ||
| 保存溫度 | -55°C to +125°C | ||
| 老化 | ±5ppm Max/year | ||
| 并聯電容 (C0) | 7 pF | ||
| 負載電容 (CL) | 30 pF | ||
| 激勵功率 | 500 μW Max | ||
| 等效串聯電阻(ESR) | 60 Ω | ||
| 抗沖擊性能 |
±5 PPM MAXIMUM 75 cm DROP TEST IN
3 AXES ON TO A HARD SURFACE
|
||
| 回流焊條件 | 260°C ±5°C FOR 10s MAXIMUM | ||
品尺寸圖.jpg)

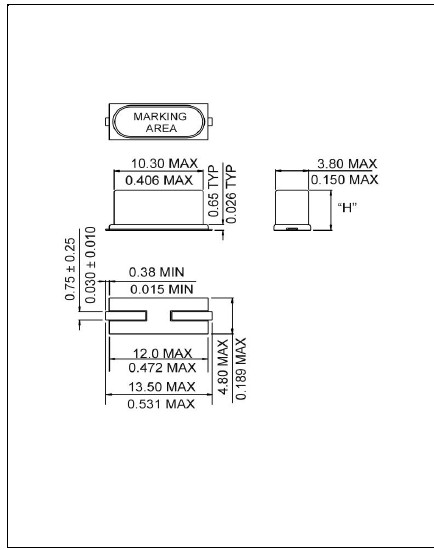

AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf 尺寸圖
| Raltron原廠編碼 | 型號 | 頻率 | 尺寸 | 頻率偏差 | 頻率穩定度 | 負載 |
| AS-3.579545-18-SMD-TR | AS-SMD | 3.579545MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-4.000-18-SMD-TR | AS-SMD | 4.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-4.9152-18-EXT-SMD-TR | AS-SMD | 4.9152MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-5.000-18-EXT-SMD-TR | AS-SMD | 5.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-6.000-12-2020-EXT-SMD-TR | AS-SMD | 6.000MHz | 13.50 x 4.80mm | ± 20 ppm | ± 20 ppm | 12 pF |
| AS-7.3728-20-EXT-SMD-TR | AS-SMD | 7.3728MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-7.3728-18-SMD-TR | AS-SMD | 7.3728MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-8.000-20-SMD-TR | AS-SMD | 8.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-8.000-18-SMD-TR | AS-SMD | 8.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-8.000-30-3030-SMD-TR | AS-SMD | 8.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 30 ppm | 30 pF |
| AS-9.8304-18-SMD-TR | AS-SMD | 9.8304MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-10.000-20-3030-SMD-TR | AS-SMD | 10.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 30 ppm | 20 pF |
| AS-11.0592-18-SMD-TR | AS-SMD | 11.0592MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-12.000-18-SMD-TR | AS-SMD | 12.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-13.560-20-SMD-TR | AS-SMD | 13.560MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-14.31818-20-SMD-TR | AS-SMD | 14.31818MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-14.7456-20-SMD-TR | AS-SMD | 14.7456MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-14.7456-18-EXT-SMD-TR | AS-SMD | 14.7456MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-16.000-18-SMD-TR | AS-SMD | 16.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-16.000-20-SMD-TR | AS-SMD | 16.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-18.432-20-SMD-TR | AS-SMD | 18.432MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-18.432-18-SMD-TR | AS-SMD | 18.432MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-19.6608-20-SMD-TR | AS-SMD | 19.6608MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-20.000-16-SMD-TR | AS-SMD | 20.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 16 pF |
| AS-20.000-20-SMD-TR | AS-SMD | 20.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-24.000-18-SMD-TR | AS-SMD | 24.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-24.576-18-F-SMD-TR | AS-SMD | 24.576MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-25.000-18-F-SMD-TR | AS-SMD | 25.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
| AS-26.000-20-F-SMD-TR | AS-SMD | 26.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 20 pF |
| AS-27.000-20-F-3030-SMD-TR | AS-SMD | 27.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 30 ppm | 20 pF |
| AS-30.000-10-F-2020-EXT-SMD-TR | AS-SMD | 30.000MHz | 13.50 x 4.80mm | ± 20 ppm | ± 20 ppm | 10 pF |
| AS-30.000-10-F-2020-EXT-SMD-TR | AS-SMD | 32.000MHz | 13.50 x 4.80mm | ± 10 ppm | ± 20 ppm | 10 pF |
| AS-40.000-18-F-EXT-SMD-TR | AS-SMD | 40.000MHz | 13.50 x 4.80mm | ± 30 ppm | ± 50 ppm | 18 pF |
