7M-16.000MAAJ-T,16MHz,-20~70°C,3225mm,臺灣TXC晶振,7M-16.000MAAJ-T晶振,頻率16MHz,工作溫度-20~70°C,3225mm晶振,小體積晶振,石英晶體諧振器,高精度晶振,7M四腳貼片晶振,藍牙模塊晶振,小型通信設備晶振,便攜式設備晶振,家電影音系統晶振.
7M-16.000MAAJ-T,16MHz,-20~70°C,3225mm 特點
1.非常小的SMD型晶體單元，覆蓋寬頻率范圍。
2.更高的頻率穩定性和可靠性。
3.極好地降低電磁干擾效應
4.符合RoHs標準/不含鉛

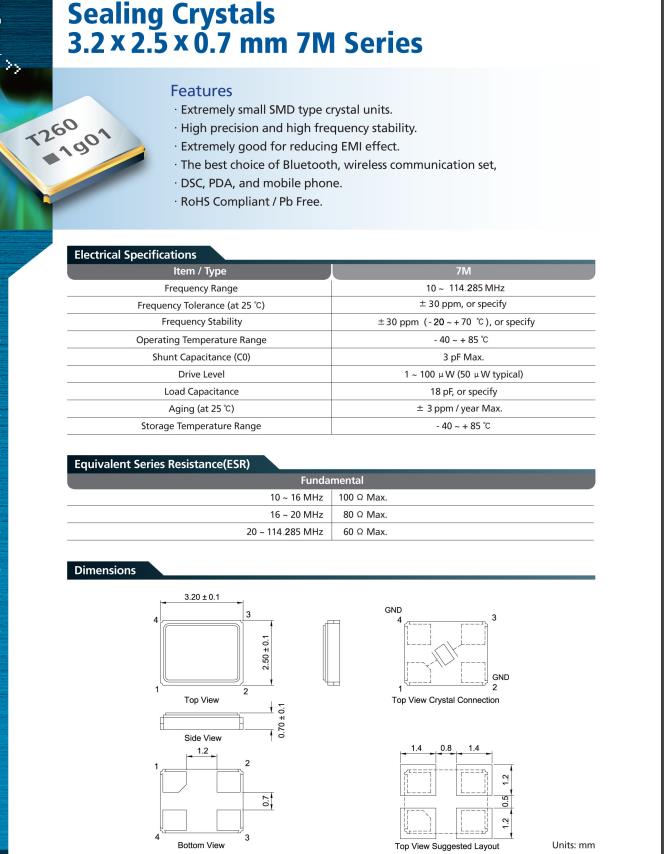

7M-16.000MAAJ-T,16MHz,-20~70°C,3225mm,參數圖

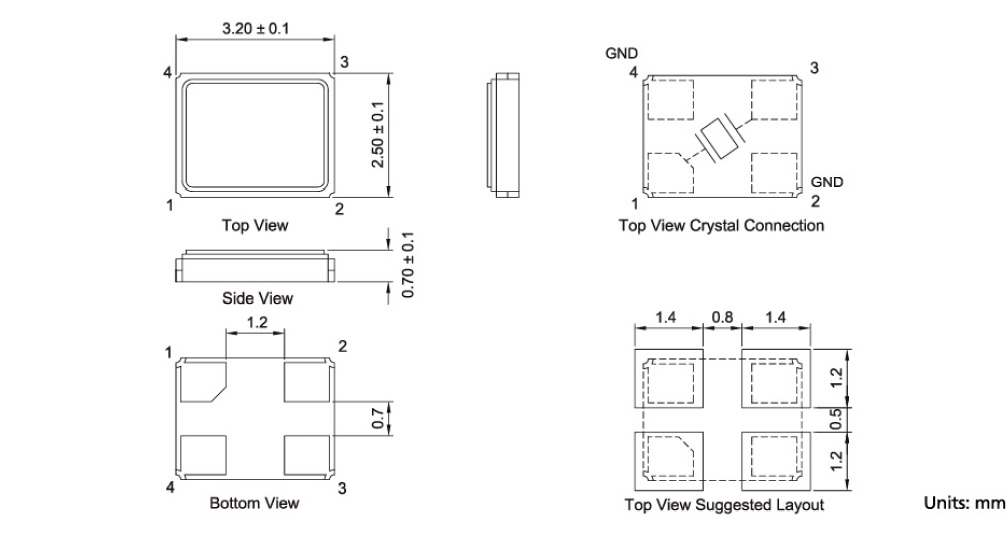

7M-16.000MAAJ-T,16MHz,-20~70°C,3225mm  尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	工作溫度
7M-24.000MAAJ-T	TXC晶振	7M	24MHz	±30ppm	-20°C ~ 70°C
7M-24.000MAAJ-T	TXC晶振	7M	24MHz	±30ppm	-20°C ~ 70°C
7M-24.000MAAJ-T	TXC晶振	7M	24MHz	±30ppm	-20°C ~ 70°C
7M-25.000MAAJ-T	TXC晶振	7M	25MHz	±30ppm	-20°C ~ 70°C
7M-25.000MAAJ-T	TXC晶振	7M	25MHz	±30ppm	-20°C ~ 70°C
7M-25.000MAAJ-T	TXC晶振	7M	25MHz	±30ppm	-20°C ~ 70°C
7M-12.000MAAJ-T	TXC晶振	7M	12MHz	±30ppm	-20°C ~ 70°C
7M-12.000MAAJ-T	TXC晶振	7M	12MHz	±30ppm	-20°C ~ 70°C
7M-12.000MAAJ-T	TXC晶振	7M	12MHz	±30ppm	-20°C ~ 70°C
7M-20.000MAAJ-T	TXC晶振	7M	20MHz	±30ppm	-20°C ~ 70°C
7M-20.000MAAJ-T	TXC晶振	7M	20MHz	±30ppm	-20°C ~ 70°C
7M-20.000MAAJ-T	TXC晶振	7M	20MHz	±30ppm	-20°C ~ 70°C
7M-16.000MAAJ-T	TXC晶振	7M	16MHz	±30ppm	-20°C ~ 70°C
7M-16.000MAAJ-T	TXC晶振	7M	16MHz	±30ppm	-20°C ~ 70°C
7M-16.000MAAJ-T	TXC晶振	7M	16MHz	±30ppm	-20°C ~ 70°C
7M-27.120MAAJ-T	TXC晶振	7M	27.12MHz	±30ppm	-20°C ~ 70°C
7M-27.120MAAJ-T	TXC晶振	7M	27.12MHz	±30ppm	-20°C ~ 70°C
7M-27.120MAAJ-T	TXC晶振	7M	27.12MHz	±30ppm	-20°C ~ 70°C
7M-27.120MAHE-T	TXC晶振	7M	27.12MHz	±30ppm	-40°C ~ 85°C
7M-27.120MAHE-T	TXC晶振	7M	27.12MHz	±30ppm	-40°C ~ 85°C
7M-27.120MAHE-T	TXC晶振	7M	27.12MHz	±30ppm	-40°C ~ 85°C
7M-26.000MAAJ-T	TXC晶振	7M	26MHz	±30ppm	-20°C ~ 70°C
7M-26.000MAAJ-T	TXC晶振	7M	26MHz	±30ppm	-20°C ~ 70°C
7M-26.000MAAJ-T	TXC晶振	7M	26MHz	±30ppm	-20°C ~ 70°C
7M-12.000MAHE-T	TXC晶振	7M	12MHz	±30ppm	-40°C ~ 85°C
7M-12.000MAHE-T	TXC晶振	7M	12MHz	±30ppm	-40°C ~ 85°C
7M-12.000MAHE-T	TXC晶振	7M	12MHz	±30ppm	-40°C ~ 85°C
7M-32.000MAHE-T	TXC晶振	7M	32MHz	±30ppm	-40°C ~ 85°C
7M-32.000MAHE-T	TXC晶振	7M	32MHz	±30ppm	-40°C ~ 85°C
7M-32.000MAHE-T	TXC晶振	7M	32MHz	±30ppm	-40°C ~ 85°C
7M-50.000MAAJ-T	TXC晶振	7M	50MHz	±30ppm	-20°C ~ 70°C
7M-50.000MAAJ-T	TXC晶振	7M	50MHz	±30ppm	-20°C ~ 70°C
7M-50.000MAAJ-T	TXC晶振	7M	50MHz	±30ppm	-20°C ~ 70°C
7M-27.120MEEQ-T	TXC晶振	7M	27.12MHz	±10ppm	-20°C ~ 70°C
7M-27.120MEEQ-T	TXC晶振	7M	27.12MHz	±10ppm	-20°C ~ 70°C
7M-27.120MEEQ-T	TXC晶振	7M	27.12MHz	±10ppm	-20°C ~ 70°C
7M-16.000MEEQ-T	TXC晶振	7M	16MHz	±10ppm	-20°C ~ 70°C
7M-16.000MEEQ-T	TXC晶振	7M	16MHz	±10ppm	-20°C ~ 70°C
7M-16.000MEEQ-T	TXC晶振	7M	16MHz	±10ppm	-20°C ~ 70°C
7M-27.000MEEQ-T	TXC晶振	7M	27MHz	±10ppm	-20°C ~ 70°C
7M-27.000MEEQ-T	TXC晶振	7M	27MHz	±10ppm	-20°C ~ 70°C
7M-27.000MEEQ-T	TXC晶振	7M	27MHz	±10ppm	-20°C ~ 70°C
7M-12.000MEEQ-T	TXC晶振	7M	12MHz	±10ppm	-20°C ~ 70°C
7M-12.000MEEQ-T	TXC晶振	7M	12MHz	±10ppm	-20°C ~ 70°C
7M-12.000MEEQ-T	TXC晶振	7M	12MHz	±10ppm	-20°C ~ 70°C
7M-25.000MEEQ-T	TXC晶振	7M	25MHz	±10ppm	-20°C ~ 70°C
7M-25.000MEEQ-T	TXC晶振	7M	25MHz	±10ppm	-20°C ~ 70°C
7M-25.000MEEQ-T	TXC晶振	7M	25MHz	±10ppm	-20°C ~ 70°C
7M-30.000MEEQ-T	TXC晶振	7M	30MHz	±10ppm	-20°C ~ 70°C
7M-30.000MEEQ-T	TXC晶振	7M	30MHz	±10ppm	-20°C ~ 70°C
7M-24.000MEEQ-T	TXC晶振	7M	24MHz	±10ppm	-20°C ~ 70°C
7M-24.000MEEQ-T	TXC晶振	7M	24MHz	±10ppm	-20°C ~ 70°C
7M-24.000MEEQ-T	TXC晶振	7M	24MHz	±10ppm	-20°C ~ 70°C
7M-32.000MEEQ-T	TXC晶振	7M	32MHz	±10ppm	-20°C ~ 70°C
7M-32.000MEEQ-T	TXC晶振	7M	32MHz	±10ppm	-20°C ~ 70°C
7M-32.000MEEQ-T	TXC晶振	7M	32MHz	±10ppm	-20°C ~ 70°C
7M-26.000MEEQ-T	TXC晶振	7M	26MHz	±10ppm	-20°C ~ 70°C
7M-26.000MEEQ-T	TXC晶振	7M	26MHz	±10ppm	-20°C ~ 70°C
7M-26.000MEEQ-T	TXC晶振	7M	26MHz	±10ppm	-20°C ~ 70°C
7M-25.000MAHV-T	TXC晶振	7M	25MHz	±30ppm	-40°C ~ 85°C
7M-25.000MAHV-T	TXC晶振	7M	25MHz	±30ppm	-40°C ~ 85°C
7M-25.000MAHV-T	TXC晶振	7M	25MHz	±30ppm	-40°C ~ 85°C
7M-12.288MAAJ-T	TXC晶振	7M	12.288MHz	±30ppm	-20°C ~ 70°C
7M-12.288MAAJ-T	TXC晶振	7M	12.288MHz	±30ppm	-20°C ~ 70°C
7M-12.288MAAJ-T	TXC晶振	7M	12.288MHz	±30ppm	-20°C ~ 70°C
7M-28.63636MAHE-T	TXC晶振	7M	28.63636MHz	±30ppm	-40°C ~ 85°C
7M-28.63636MAHE-T	TXC晶振	7M	28.63636MHz	±30ppm	-40°C ~ 85°C
7M-28.63636MAHE-T	TXC晶振	7M	28.63636MHz	±30ppm	-40°C ~ 85°C
7M-10.000MAHE-T	TXC晶振	7M	10MHz	±30ppm	-40°C ~ 85°C
7M-10.000MAHE-T	TXC晶振	7M	10MHz	±30ppm	-40°C ~ 85°C
7M-10.000MAHE-T	TXC晶振	7M	10MHz	±30ppm	-40°C ~ 85°C
7M-16.000MAHE-T	TXC晶振	7M	16MHz	±30ppm	-40°C ~ 85°C
7M-16.000MAHE-T	TXC晶振	7M	16MHz	±30ppm	-40°C ~ 85°C
7M-16.000MAHE-T	TXC晶振	7M	16MHz	±30ppm	-40°C ~ 85°C
7M-40.000MEEQ-T	TXC晶振	7M	40MHz	±10ppm	-20°C ~ 70°C
7M-40.000MEEQ-T	TXC晶振	7M	40MHz	±10ppm	-20°C ~ 70°C
7M-40.000MEEQ-T	TXC晶振	7M	40MHz	±10ppm	-20°C ~ 70°C
7M54072001	TXC晶振	7M	54MHz	±20ppm	-40°C ~ 85°C
7M54072001	TXC晶振	7M	54MHz	±20ppm	-40°C ~ 85°C
7M54072001	TXC晶振	7M	54MHz	±20ppm	-40°C ~ 85°C
7M54072002	TXC晶振	7M	54MHz	±15ppm	-40°C ~ 85°C
7M54072002	TXC晶振	7M	54MHz	±15ppm	-40°C ~ 85°C
7M54072002	TXC晶振	7M	54MHz	±15ppm	-40°C ~ 85°C
7M50070021	TXC晶振	7M	50MHz	±20ppm	-40°C ~ 85°C
7M50070021	TXC晶振	7M	50MHz	±20ppm	-40°C ~ 85°C
7M50070021	TXC晶振	7M	50MHz	±20ppm	-40°C ~ 85°C
7M-13.560MAAE-T	TXC晶振	7M	13.56MHz	±30ppm	-20°C ~ 70°C
7M-13.560MAAE-T	TXC晶振	7M	13.56MHz	±30ppm	-20°C ~ 70°C
7M-13.560MAAE-T	TXC晶振	7M	13.56MHz	±30ppm	-20°C ~ 70°C
7M-20.000MAAE-T	TXC晶振	7M	20MHz	±30ppm	-20°C ~ 70°C
7M-20.000MAAE-T	TXC晶振	7M	20MHz	±30ppm	-20°C ~ 70°C
7M-20.000MAAE-T	TXC晶振	7M	20MHz	±30ppm	-20°C ~ 70°C
7M-13.000MAAJ-T	TXC晶振	7M	13MHz	±30ppm	-20°C ~ 70°C
7M-13.000MAAJ-T	TXC晶振	7M	13MHz	±30ppm	-20°C ~ 70°C
7M-13.000MAAJ-T	TXC晶振	7M	13MHz	±30ppm	-20°C ~ 70°C
7M-32.000MAAJ-T	TXC晶振	7M	32MHz	±30ppm	-20°C ~ 70°C
7M-32.000MAAJ-T	TXC晶振	7M	32MHz	±30ppm	-20°C ~ 70°C
7M-32.000MAAJ-T	TXC晶振	7M	32MHz	±30ppm	-20°C ~ 70°C
7M-13.560MAAJ-T	TXC晶振	7M	13.56MHz	±30ppm	-20°C ~ 70°C
7M-13.560MAAJ-T	TXC晶振	7M	13.56MHz	±30ppm	-20°C ~ 70°C
