首頁進口晶振富士晶振FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振

FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振

規格型號：4604444
頻率：27.7MHz
尺寸：1612mm
PDF
產品描述：FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，進口晶振，超小型晶振，1610晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，貼片晶振，6G信...

FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，進口晶振，超小型晶振，1610晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，貼片晶振，6G信號接收器晶振，6G網絡晶振，高品質晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛

FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振

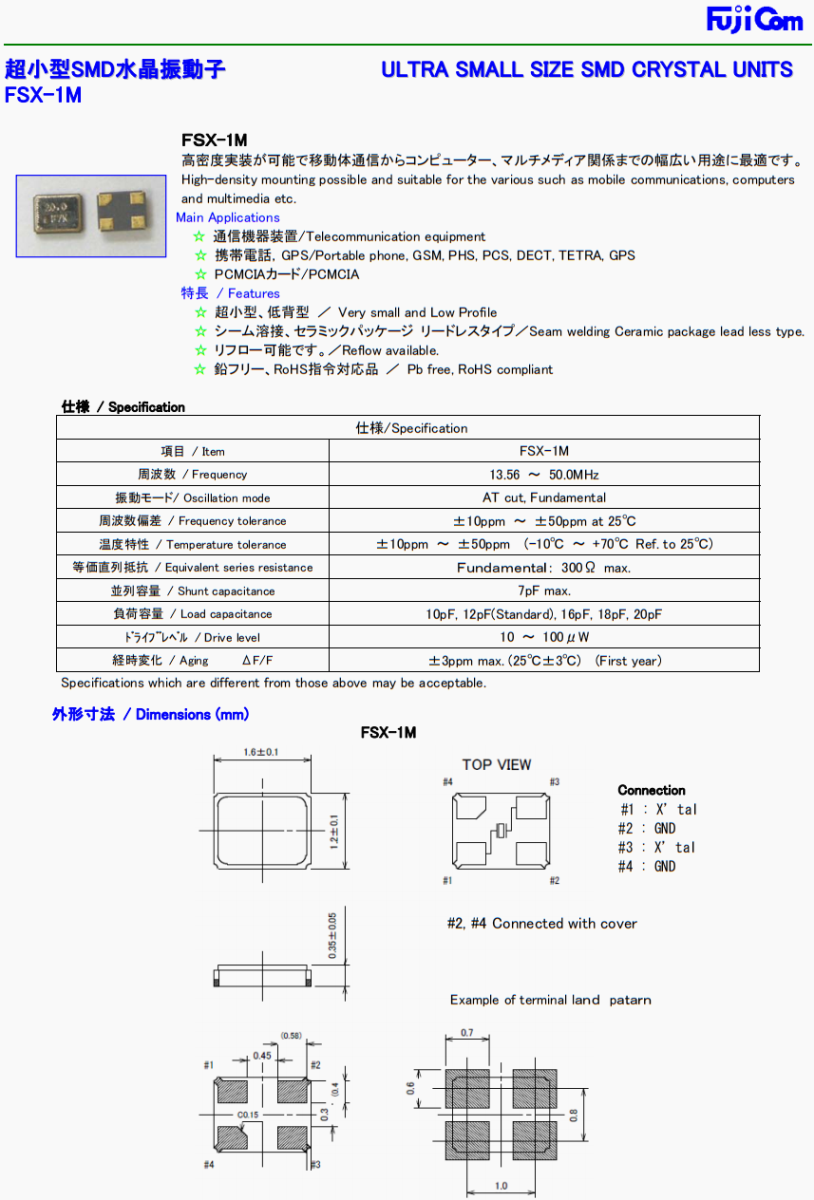

規格
項目	FSX-1M
頻率	13.56 ～ 50.0MHz
各種模式	AT cut, Fundamental
頻率容差	±10ppm ~ ±50ppm at 25℃
溫度范圍內的頻率穩定度	±10ppm ~ ±50ppm (-10℃ ~ +70℃ Ref. to 25℃)
等效串聯電子	Fundamental： 300Ω max.
分流電容	7pF max.
負載電容	10pF, 12pF(Standard), 16pF, 18pF, 20pF
驅動電平	10 ～ 100μW
老化	±3ppm max. (25℃±3℃) (First year)

FujiCom日本晶振,遙遙領先的6G無線傳輸晶振,FCX1M02770012E3J晶振

原廠編碼	生產商	型號	頻率	頻率穩定度	頻率容差	負載電容	工作溫度
FCX1M04210512E3J	Fuji晶振	FCX-1M	42.105 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04400012E3J	Fuji晶振	FCX-1M	44 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02770012E3J	Fuji晶振	FCX-1M	27.7 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02863012E3J	Fuji晶振	FCX-1M	28.63 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02870412E3J	Fuji晶振	FCX-1M	28.704 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04032012E3J	Fuji晶振	FCX-1M	40.32 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04500012E3J	Fuji晶振	FCX-1M	45 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04454512E3J	Fuji晶振	FCX-1M	44.545 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04510012E3J	Fuji晶振	FCX-1M	45.1 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04249612E3J	Fuji晶振	FCX-1M	42.496 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M03916812E3J	Fuji晶振	FCX-1M	39.168 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04000012E3J	Fuji晶振	FCX-1M	40 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02822412E3J	Fuji晶振	FCX-1M	28.224 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M04800012E3J	Fuji晶振	FCX-1M	48 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX2S02266012Y1J	Fuji晶振	FCX-2S	22.66 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S02400012Y1J	Fuji晶振	FCX-2S	24 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S02430512Y1J	Fuji晶振	FCX-2S	24.305 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S02211812Y1J	Fuji晶振	FCX-2S	22.118 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S02200012Y1J	Fuji晶振	FCX-2S	22 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S02194812Y1J	Fuji晶振	FCX-2S	21.948 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S04400015U3L	Fuji晶振	FCX-2S	44 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S03125012Y1J	Fuji晶振	FCX-2S	31.25 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S04000015U3L	Fuji晶振	FCX-2S	40 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S03040012Y1J	Fuji晶振	FCX-2S	30.4 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03705012Y1J	Fuji晶振	FCX-2S	37.05 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03000012Y1J	Fuji晶振	FCX-2S	30 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03333312Y1J	Fuji晶振	FCX-2S	33.333 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03333315Y1J	Fuji晶振	FCX-2S	33.333 MHz	±30ppm	±10ppm	15pF	-40°C ~ 85°C
FCX2S02949112Y1J	Fuji晶振	FCX-2S	29.491 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S04096015U3L	Fuji晶振	FCX-2S	40.96 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S03840012Y1J	Fuji晶振	FCX-2S	38.4 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03740012Y1J	Fuji晶振	FCX-2S	37.4 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03800012Y1J	Fuji晶振	FCX-2S	38 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03900012Y1J	Fuji晶振	FCX-2S	39 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S04200015U3L	Fuji晶振	FCX-2S	42 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S04160015U3L	Fuji晶振	FCX-2S	41.6 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S03700012Y1J	Fuji晶振	FCX-2S	37 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03541612Y1J	Fuji晶振	FCX-2S	35.416 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03300012Y1J	Fuji晶振	FCX-2S	33 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03333012Y1J	Fuji晶振	FCX-2S	33.33 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03032012Y1J	Fuji晶振	FCX-2S	30.32 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03888012Y1J	Fuji晶振	FCX-2S	38.88 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03600012Y1J	Fuji晶振	FCX-2S	36 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S04800015U3L	Fuji晶振	FCX-2S	48 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S02257912Y1J	Fuji晶振	FCX-2S	22.579 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03386812Y1J	Fuji晶振	FCX-2S	33.868 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S03072012Y1J	Fuji晶振	FCX-2S	30.72 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S04500015U3L	Fuji晶振	FCX-2S	45 MHz	±50ppm	±20ppm	15pF	-40°C ~ 105°C
FCX2S03200012Y1J	Fuji晶振	FCX-2S	32 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S02351212Y1J	Fuji晶振	FCX-2S	23.512 MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
FCX2S01600009E1D	Fuji晶振	FCX-2S	16 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
FCX1M02714512E3J	Fuji晶振	FCX-1M	27.145 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02950012E3J	Fuji晶振	FCX-1M	29.5 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02949112E3J	Fuji晶振	FCX-1M	29.4912 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02880012E3J	Fuji晶振	FCX-1M	28.8 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
FCX1M02700012E3J	Fuji晶振	FCX-1M	27 MHz	±30ppm	±20ppm	12pF	-20°C ~ 70°C
