無源晶振就是石英晶體諧振器的別稱，英文名（crystal），無源晶體沒有電壓的問題，信號電平是可變的，主要用在各種電子線路中起產生頻率的作用。是有2個引腳的無極性元件，需要借助于時鐘電路才能產生振蕩信號，自身無法振蕩起來，分為直插式與貼片式。
我們提供全面的石英晶體諧振器產品組合。我們廣泛的行業標準封裝選擇包括陶瓷表面貼裝、HC-49/U、金屬表面貼裝、管狀和塑料模制。這些晶體在電子應用中充當主要組件。

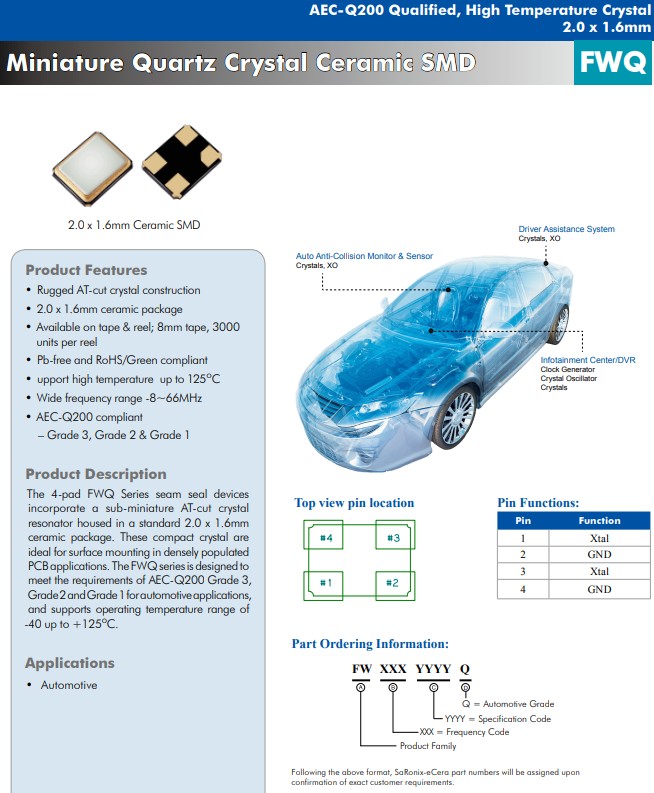

亞陶晶振4焊盤FWQ系列接縫密封裝置包含一個安裝在標準2.0x1.6mm中的超小型AT切割晶體諧振器陶瓷封裝。這些緊湊的晶體非常適合在密集的PCB應用中進行表面安裝。
FWQ系列超小型AT切割晶體諧振器陶瓷封裝,FW400WFQA1,FW400WFMR1,SMD晶振,ECERA晶體

Manufacturer Part Number 原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency	Frequency Stability頻率穩定度
GC0800044	Diodes Incorporated	SaRonix-eCera™ GC	MHz Crystal	8MHz	±50ppm
GC0800044	Diodes Incorporated	SaRonix-eCera™ GC	MHz Crystal	8MHz	±50ppm
GC0800044	Diodes Incorporated	SaRonix-eCera™ GC	MHz Crystal	8MHz	±50ppm
FL1200112	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	12MHz	±30ppm
FL1200112	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	12MHz	±30ppm
FL1200112	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	12MHz	±30ppm
FL2000059	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	20MHz	±10ppm
FL2000059	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	20MHz	±10ppm
FL2000059	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	20MHz	±10ppm
FL2400022	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±10ppm
FL2400022	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±10ppm
FL2400022	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±10ppm
FL2500133	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	25MHz	±20ppm
FL2500133	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	25MHz	±20ppm
FL2500133	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	25MHz	±20ppm
FL3000037	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	30MHz	±30ppm
FL3000037	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	30MHz	±30ppm
FL3000037	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	30MHz	±30ppm
FL2400081	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±30ppm
FL2400081	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±30ppm
FL2400081	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±30ppm
FL3200037	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	32MHz	±15ppm
FL3200037	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	32MHz	±15ppm
FL3200037	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	32MHz	±15ppm

FWQ系列超小型AT切割晶體諧振器陶瓷封裝,FW400WFQA1,FW400WFMR1,SMD晶振,ECERA晶體

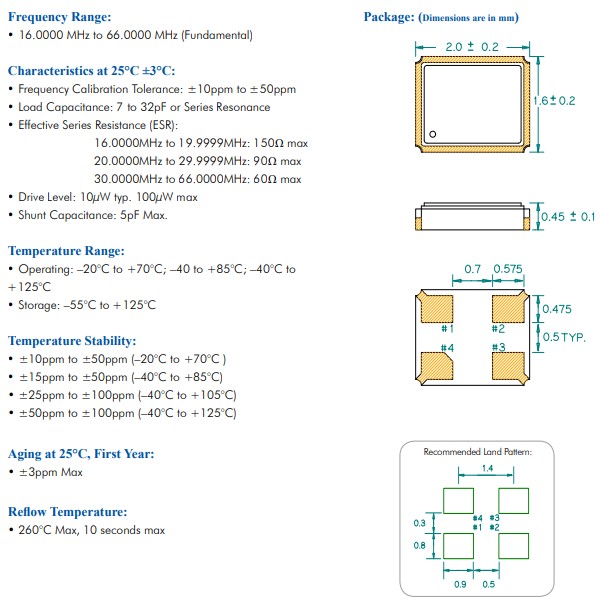

產品特點：
頻率范圍：16.000MHz至66.000MHz

工作溫度范圍：-20℃至+70℃，-40℃至+85℃，-40℃至+125℃

儲存溫度：-55℃至+125℃

堅固的AT切割水晶結構

SMD晶振小體積尺寸：2.0x1.6mm 陶瓷封裝

卷帶式提供；8 毫米膠帶，每卷3000個單位

無鉛且符合 RoHS/Green 標準

符合 AEC-Q200 – 3級、2級和1級

應用于汽車

FL2400067	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±20ppm
FL2400067	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±20ppm
FL2400067	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	24MHz	±20ppm
FL4000157Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	40MHz	±10ppm
FL4000157Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	40MHz	±10ppm
FL4000157Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	40MHz	±10ppm
FL2600177Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	26MHz	±20ppm
FL2600177Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	26MHz	±20ppm
FL2600177Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	26MHz	±20ppm
FL2700102Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	27MHz	±30ppm
FL2700102Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	27MHz	±30ppm
FL2700102Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	27MHz	±30ppm
FQ2400005	Diodes Incorporated	SaRonix-eCera™ FQ	MHz Crystal	24MHz	±30ppm
FQ2400005	Diodes Incorporated	SaRonix-eCera™ FQ	MHz Crystal	24MHz	±30ppm
FQ2400005	Diodes Incorporated	SaRonix-eCera™ FQ	MHz Crystal	24MHz	±30ppm
FY2500117	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	25MHz	±20ppm
FY2500117	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	25MHz	±20ppm
FY2500117	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	25MHz	±20ppm
FL2500123Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	25MHz	±50ppm
FL2500123Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	25MHz	±50ppm
FL2500123Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	25MHz	±50ppm
FL5000058Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	50MHz	±15ppm
FL5000058Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	50MHz	±15ppm
FL5000058Z	Diodes Incorporated	SaRonix-eCera™ FL	MHz Crystal	50MHz	±15ppm
FY0800018	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	8MHz	±30ppm

Product Parameters

Compliance (Only Automotive supports PPAP)	Automotive
ProductSeries	FWQ
Family	Crystal
Legacy PN	None
Freq Range (MHz)	16 to 66
Package Type	Ceramic Seam
Package Size (mm)	2.0 x 1.6 x 0.45
Pads	4
NotRecommended	0

FWQ系列超小型AT切割晶體諧振器陶瓷封裝,FW400WFQA1,FW400WFMR1,SMD晶振,ECERA晶體
產品參數：

合規性（僅汽車支持 PPAP）汽車

產品系列 FWQ

家庭水晶諧振器

舊版 PN 沒有任何

頻率范圍 16MHz至 66MHz

包裝類型陶瓷縫

包裝尺寸 2.0x1.6x0.45mm

墊 4腳

不建議 0

FY0800018	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	8MHz	±30ppm
FY0800018	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	8MHz	±30ppm
FY1000009	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	10MHz	±30ppm
FY1000009	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	10MHz	±30ppm
FY1000009	Diodes Incorporated	SaRonix-eCera™ FY	MHz Crystal	10MHz	±30ppm
FH1200004	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	12MHz	±15ppm
FH1200004	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	12MHz	±15ppm
FH1200004	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	12MHz	±15ppm
FH3000007	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	30MHz	±30ppm
FH3000007	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	30MHz	±30ppm
FH3000007	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	30MHz	±30ppm
FH4000047	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	40MHz	±10ppm
FH4000047	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	40MHz	±10ppm
FH4000047	Diodes Incorporated	SaRonix-eCera™ FH	MHz Crystal	40MHz	±10ppm
GB0400034	Diodes Incorporated	SaRonix-eCera™ GB	MHz Crystal	4MHz	±30ppm
GB1000015	Diodes Incorporated	SaRonix-eCera™ GB	MHz Crystal	10MHz	±30ppm
FW1600008	Diodes Incorporated	SaRonix-eCera™ FW	MHz Crystal	16MHz	±20ppm
FW1600008	Diodes Incorporated	SaRonix-eCera™ FW	MHz Crystal	16MHz	±20ppm
FW1600008	Diodes Incorporated	SaRonix-eCera™ FW	MHz Crystal	16MHz	±20ppm
FW1920001	Diodes Incorporated	SaRonix-eCera™ FW	MHz Crystal	19.2MHz	±20ppm
FW1920001	Diodes Incorporated	SaRonix-eCera™ FW	MHz Crystal	19.2MHz	±20ppm
FW1920001	Diodes Incorporated	SaRonix-eCera™ FW	MHz Crystal	19.2MHz	±20ppm
F90800018Q	Diodes Incorporated	SaRonix-eCera™ F9	MHz Crystal	8MHz	±50ppm
F90800018Q	Diodes Incorporated	SaRonix-eCera™ F9	MHz Crystal	8MHz	±50ppm
F90800018Q	Diodes Incorporated	SaRonix-eCera™ F9	MHz Crystal	8MHz	±50ppm

石英晶體諧振器是一種生活中隨處可見的電子器件，誕生于20世紀20年代初，因具有較高的品質因數及良好的頻率穩定性，被廣泛應用于航天、通信、軍事等工業領域。顧名思義，制造石英晶體諧振器的原材料就是石英，一種非常重要的壓電材料。其主要特征是其原子或分子有規律排列，反映在宏觀上是外形的對稱性，在電場的作用下，晶體內部產生應力而形變，從而產生機械振動，獲得特定的頻率。FWQ系列超小型AT切割晶體諧振器陶瓷封裝,FW400WFQA1,FW400WFMR1,SMD晶振,ECERA晶體
