HX503系列滿足通信系統和其他高性能設備的時鐘源規范
來源：http://www.ytxiaoping.cn 作者：金洛鑫電子 2022年07月13
我們的高溫晶體振蕩器（HX系列）專門設計用于支持高達125°C的高溫，以滿足當今復雜系統的需求。該系列包括CMOS/TTL、LVPECL、LVDS、CML和HCSL輸出邏輯以及從2.0mmx1.6mm到7.0mmx5.0mm的各種尺寸。

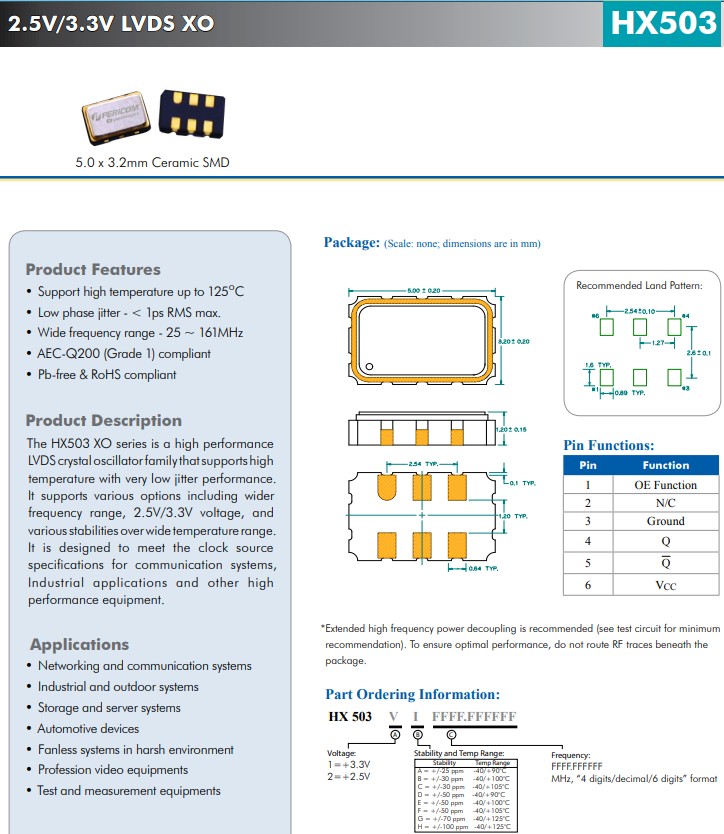

百利通亞陶晶振HX503 XO系列是高性能LVDS晶振系列，支持高溫且抖動性能極低。HX503系列小體積晶振尺寸5.0x3.2mm、高溫LVDS差分晶體振蕩器，它支持各種選項，包括更寬的頻率范圍、2.5V/3.3V電壓以及在寬溫度范圍內的各種穩定性。它旨在滿足通信系統、工業應用和其他高性能設備的時鐘源規范。
HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
.JPG)
.JPG)
百利通亞陶晶振HX503 XO系列是高性能LVDS晶振系列，支持高溫且抖動性能極低。HX503系列小體積晶振尺寸5.0x3.2mm、高溫LVDS差分晶體振蕩器，它支持各種選項，包括更寬的頻率范圍、2.5V/3.3V電壓以及在寬溫度范圍內的各種穩定性。它旨在滿足通信系統、工業應用和其他高性能設備的時鐘源規范。
HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
| FD1940004 | Diodes Incorporated | SaRonix-eCera™ FD | 19.44MHz | ±50ppm |
| FD2000046 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±50ppm |
| FD2000048 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±50ppm |
| FD2000049 | Diodes Incorporated | SaRonix-eCera™ FD | 20MHz | ±25ppm |
| FD2400022 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±50ppm |
| FD2400023 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±50ppm |
| FD2400024 | Diodes Incorporated | SaRonix-eCera™ FD | 24MHz | ±25ppm |
| FD2450018 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±50ppm |
| FD2450019 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±25ppm |
| FD2500049 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±25ppm |
| FD2500052 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500054 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500057 | Diodes Incorporated | SaRonix-eCera™ FD | 25.0012MHz | ±25ppm |
| FD2500058 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500061 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±25ppm |
| FD2600027 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±50ppm |
| FD2600028 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±25ppm |
| FD2600030 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±50ppm |
| FD2600031 | Diodes Incorporated | SaRonix-eCera™ FD | 26MHz | ±25ppm |
| FD2660003 | Diodes Incorporated | SaRonix-eCera™ FD | 26.66MHz | ±25ppm |
| FD2700033 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±25ppm |
| FD2700034 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
| FD2700035 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
| FD2700038 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
| FD2700043 | Diodes Incorporated | SaRonix-eCera™ FD | 27MHz | ±50ppm |
HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
產品特點：
產品特點：
支持高達125°C的高溫
低相位抖動 - < 1ps RMS最大值。
寬頻率范圍 - 25 ~ 161MHz石英晶振
符合AEC-Q200（1級）標準
無鉛且符合 RoHS 標準
應用于：網絡和通信系統，工業和戶外系統，存儲和服務器系統，汽車設備，惡劣環境下的無風扇系統，專業視頻設備，測試和測量設備
| FD2860005 | Diodes Incorporated | SaRonix-eCera™ FD | 28.6363MHz | ±50ppm |
| FD2860006 | Diodes Incorporated | SaRonix-eCera™ FD | 28.63636MHz | ±50ppm |
| FD3000014 | Diodes Incorporated | SaRonix-eCera™ FD | 30MHz | ±25ppm |
| FD3000015 | Diodes Incorporated | SaRonix-eCera™ FD | 30MHz | ±50ppm |
| FD3000016 | Diodes Incorporated | SaRonix-eCera™ FD | 30MHz | ±50ppm |
| FD3120001 | Diodes Incorporated | SaRonix-eCera™ FD | 31.25MHz | ±25ppm |
| FD3300021 | Diodes Incorporated | SaRonix-eCera™ FD | 33MHz | ±50ppm |
| FD3300022 | Diodes Incorporated | SaRonix-eCera™ FD | 33MHz | ±25ppm |
| FD3300023 | Diodes Incorporated | SaRonix-eCera™ FD | 33MHz | ±50ppm |
| FD3330016 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±25ppm |
| FD3330017 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±50ppm |
| FD3330018 | Diodes Incorporated | SaRonix-eCera™ FD | 33.3333MHz | ±50ppm |
| FD3330019 | Diodes Incorporated | SaRonix-eCera™ FD | 33.3333MHz | ±25ppm |
| FD3330020 | Diodes Incorporated | SaRonix-eCera™ FD | 33.3333MHz | ±50ppm |
| FD3330022 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±50ppm |
| FD3330024 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333333MHz | ±25ppm |
| FD3330026 | Diodes Incorporated | SaRonix-eCera™ FD | 33.333MHz | ±50ppm |
| FD3430001 | Diodes Incorporated | SaRonix-eCera™ FD | 34.368MHz | ±25ppm |
| FD3530003 | Diodes Incorporated | SaRonix-eCera™ FD | 35.328MHz | ±50ppm |
| FD3530004 | Diodes Incorporated | SaRonix-eCera™ FD | 35.328MHz | ±25ppm |
| FD3530005 | Diodes Incorporated | SaRonix-eCera™ FD | 35.328MHz | ±50ppm |
| FD3600009 | Diodes Incorporated | SaRonix-eCera™ FD | 36MHz | ±25ppm |
| FD3680001 | Diodes Incorporated | SaRonix-eCera™ FD | 36.864MHz | ±50ppm |
| FD3680002 | Diodes Incorporated | SaRonix-eCera™ FD | 36.864MHz | ±25ppm |
| FD3680003 | Diodes Incorporated | SaRonix-eCera™ FD | 36.864MHz | ±50ppm |

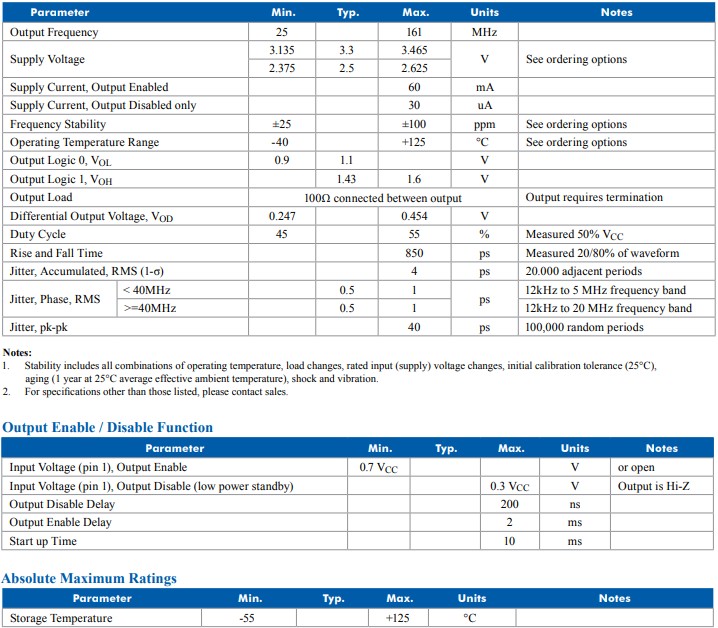

Product Parameters
| Subfamily | High Temp XO |
|---|---|
| Product Series | HX |
| Compliance(Only Automotive supports PPAP) | Standard |
| Freq Range (MHz) | 25 to 162 (1.8V/2.5V/3.3V) |
| Jitter RMS (ps) | <1 |
| Stability (PPM) | 25 to 100 |
| Package Size (mm) | 5.0 x 3.2 x 1.2 |
| PkgType | Ceramic Seam |
| Output Logic | LVDS |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
產品參數：
產品參數：
類別 高溫XO 貼片振蕩器
產品系列 HX
合規性（僅汽車支持PPAP）標準
頻率范圍 (MHz) 25至162 (1.8V/2.5V/3.3V)
抖動均方根 (ps) <1
穩定性 (PPM) 25 到 100
包裝尺寸 5.0x3.2x1.2mm
包裝類型 陶瓷縫
輸出邏輯 LVDS
電源電壓 3.3V, 2.5V
墊 6腳
| FD4000119 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±50ppm |
| FD4000120 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±25ppm |
| FD4000121 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±50ppm |
| FD4000123 | Diodes Incorporated | SaRonix-eCera™ FD | 40MHz | ±25ppm |
| FD4100001 | Diodes Incorporated | SaRonix-eCera™ FD | 41MHz | ±50ppm |
| FD4100002 | Diodes Incorporated | SaRonix-eCera™ FD | 41MHz | ±50ppm |
| FD4400070 | Diodes Incorporated | SaRonix-eCera™ FD | 41MHz | ±50ppm |
| FD4470001 | Diodes Incorporated | SaRonix-eCera™ FD | 44.736MHz | ±25ppm |
| FD4800046 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±50ppm |
| FD4800047 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±25ppm |
| FD4800048 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±50ppm |
| FD4800050 | Diodes Incorporated | SaRonix-eCera™ FD | 48MHz | ±50ppm |
| FD4910004 | Diodes Incorporated | SaRonix-eCera™ FD | 49.152MHz | ±25ppm |
| FD5000032 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000033 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±25ppm |
| FD5000034 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000036 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000037 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5000040 | Diodes Incorporated | SaRonix-eCera™ FD | 50MHz | ±50ppm |
| FD5400017 | Diodes Incorporated | SaRonix-eCera™ FD | 54MHz | ±50ppm |
| FD5670001 | Diodes Incorporated | SaRonix-eCera™ FD | 56.75MHz | ±50ppm |
| FD6000016 | Diodes Incorporated | SaRonix-eCera™ FD | 60MHz | ±50ppm |
| FD6250007 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
| FD6250008 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±25ppm |
| FD6250009 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
HX503系列滿足通信系統和其他高性能設備的時鐘源規范,UF5031DB0156.250000,貼片振蕩器,ECERA晶振
HX501 25 ~ 100 5.0x3.2x1.2 1至135 (1.8V) ; 1 至 162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷縫 1.8V/2.5V/3.3V、5.0x3.2mm、高溫CMOS晶體振蕩器
HX501 25 ~ 100 5.0x3.2x1.2 1至135 (1.8V) ; 1 至 162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷縫 1.8V/2.5V/3.3V、5.0x3.2mm、高溫CMOS晶體振蕩器
HX502 25 ~ 100 5.0x3.2x1.2 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷縫 2.5V/3.3V、5.0x3.2mm、高溫LVPECL晶體振蕩器
HX503 25 ~ 100 5.0x3.2x1.2 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷縫 2.5V/3.3V、5.0x3.2mm、高溫LVDS晶體振蕩器
HX701 25 ~ 100 7.0x5.0x1.4 1至135 (1.8V) ; 1 至 162 (2.5/3.3V) <1 CMOS 3.32.51.8 4 陶瓷縫 1.8V/2.5V/3.3V、7.0x5.0mm、高溫CMOS晶體振蕩器
HX702 25 ~ 100 7.0x5.0x1.4 25至162 (2.5V/3.3V) <1 LVPECL 3.32.5 6 陶瓷縫 2.5V/3.3V、7.0x5.0mm、高溫LVPECL晶體振蕩器
HX703 25 ~ 100 7.0x5.0x1.4 25至162 (1.8V/2.5V/3.3V) <1 LVDS 3.32.5 6 陶瓷縫 2.5V/3.3V、7.0x5.0mm、高溫LVDS晶體振蕩器
