NDK晶振公司全名叫做日本電波工業株式會社，這幾乎是我每次寫NDK相關文章里，都會說明的一點，當然，為了方便朗朗上口，以下仍用簡稱NDK晶振。這家晶體制造商已經有了數十年的歷史了，不止在日本國內，甚至是其他國家都有不小的聲名，我國更是NDK石英晶振的主要市場，因為NDK公司擅長研發生產車規晶振，而我國是汽車制造與出口大國，因此市場上的NDK品牌的汽車級晶振非常暢銷。其中3225貼片晶振是比較常用的，大多數產品身上都需要用到一顆3225晶振，因為這種晶體尺寸小，成本低，穩定性好。NDK公司生產的3225晶振有很多款料號和代碼，接下來金洛鑫電子就帶大家看下。

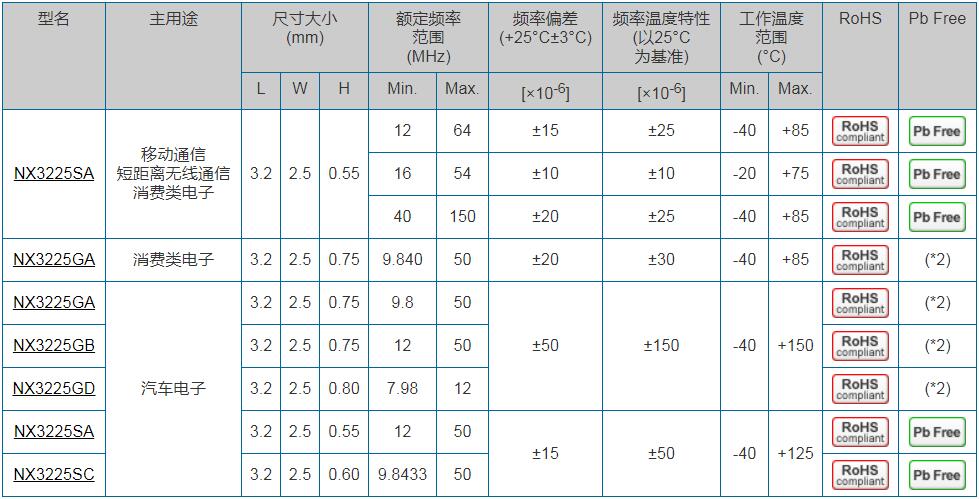

3225mm系列NDK晶振代碼表：

原廠編碼	廠家	型號	頻率	頻率穩定度	尺寸
NX3225GA-26.000M-STD-CRG-2	NDK	NX3225GA	26MHz	±30ppm	(3.20mmx2.50mm)
NX3225GA-26MHZ-TI	NDK	NX3225GA	26MHz	±40ppm	(3.20mmx2.50mm)
NX3225GA-16.000M-STD-CRG-2	NDK	NX3225GA	16MHz	±30ppm	(3.20mmx2.50mm)
NX3225GA-27.000M-STD-CRG-1	NDK	NX3225GA	27MHz	±30ppm	(3.20mmx2.50mm)
NX3225SA-24.000MHZ-STD-CSR-1	NDK	NX3225SA	24MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-16.000MHZ-STD-CSR-1	NDK	NX3225SA	16MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-32.000MHZ-STD-CSR-1	NDK	NX3225SA	32MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-26.000MHZ-STD-CSR-1	NDK	NX3225SA	26MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-20.000MHZ-STD-CSR-1	NDK	NX3225SA	20MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-14.31818MHZ-STD-CSR-1	NDK	NX3225SA	14.31818MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-24.576MHZ-STD-CSR-1	NDK	NX3225SA	24.576MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-27.000MHZ-STD-CSR-1	NDK	NX3225SA	27MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-32M-EXS00A-02994	NDK	NX3225SA	32MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-25.000M-STD-CSR-3	NDK	NX3225SA	25MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-20.000M-STD-CSR-3	NDK	NX3225SA	20MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-26.000M-STD-CSQ-1	NDK	NX3225SA	26MHz	±10ppm	(3.20mmx2.50mm)
NX3225SA-30.000M-STD-CSR-3	NDK	NX3225SA	30MHz	±15ppm	(3.20mmx2.50mm)
NX3225SA-32MHZ-EXS00A-CS02368	NDK	NX3225SA	32MHz	±16ppm	(3.20mmx2.50mm)
NX3225SA-25.000M-STD-CRS-2	NDK	NX3225SA	25MHz	±50ppm	(3.20mmx2.50mm)
NX3225SA-27M-STD-CRS-2	NDK	NX3225SA	27MHz	±50ppm	(3.20mmx2.50mm)
NX3225SC-30.320M-EXS00A-CS03981	NDK	NX3225SC	30.32MHz	±25ppm	(3.20mmx2.50mm)
NX3225SA-12MHZ-STD-CSR-6	NDK	NX3225SA	12MHz	±25ppm	(3.20mmx2.50mm)
NX3225SA-16MHZ-STD-CSR-6	NDK	NX3225SA	16MHz	±25ppm	(3.20mmx2.50mm)
NX3225SA-26.000000MHZ-G4	NDK	NX3225SA	26MHz	±10ppm	(3.20mmx2.50mm)
NX3225SA-26.000000MHZ-B1	NDK	NX3225SA	26MHz	±10ppm	(3.20mmx2.50mm)
NX3225SA-16.000000MHZ-T1	NDK	NX3225SA	16MHz	±10ppm	(3.20mmx2.50mm)
NX3225SA-26.000000MHZ-G2	NDK	NX3225SA	26MHz	±11ppm	(3.20mmx2.50mm)
