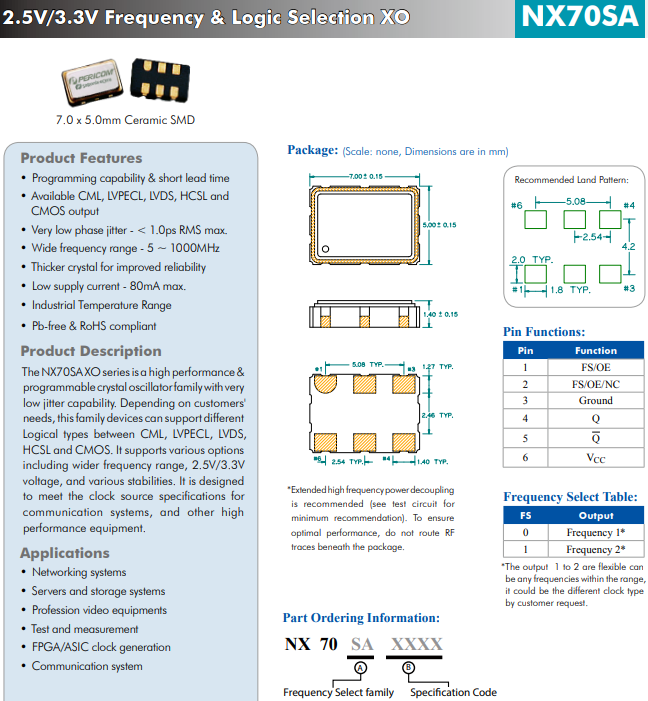

亞陶貼片晶振NX70SA XO系列是具有極低抖動能力的高性能可編程晶體振蕩器系列。小體積晶振尺寸7.0mmx5.0mm，雙頻邏輯可編程XO，根據客戶的需求，該系列器件可以支持CML、LVPECL、LVDS、HCSL和CMOS之間的不同邏輯類型。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。

產品特點：

編程能力和交貨時間短

可用的CML、LVPECL、LVDS、HCSL和CMOS輸出差分晶體振蕩器

非常低的相位抖動 - < 1.0ps RMS最大值。

寬頻率范圍 - 5~1000MHz

更厚的晶體以提高可靠性

低電源電流-最大80mA。

工業溫度范圍

無鉛且符合RoHS標準

應用：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC 時鐘生成，通訊系統
NX70SA系列具有極低抖動能力的高性能可編程晶體振蕩器,NX7021E0125.000000,可編程晶振,差分晶體振蕩器

FDC500014	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FK0100001	Diodes Incorporated	SaRonix-eCera™ FK	1MHz	±50ppm	-20°C ~ 70°C
FK0100002	Diodes Incorporated	SaRonix-eCera™ FK	1MHz	±50ppm	-20°C ~ 70°C
FK0180004	Diodes Incorporated	SaRonix-eCera™ FK	1.843MHz	±50ppm	-20°C ~ 70°C
FK0180005	Diodes Incorporated	SaRonix-eCera™ FK	1.843MHz	±25ppm	-20°C ~ 70°C
FK0180006	Diodes Incorporated	SaRonix-eCera™ FK	1.843MHz	±50ppm	-40°C ~ 85°C
FK0200002	Diodes Incorporated	SaRonix-eCera™ FK	2MHz	±50ppm	-20°C ~ 70°C
FK0360002	Diodes Incorporated	SaRonix-eCera™ FK	3.686MHz	±50ppm	-20°C ~ 70°C
FK0360003	Diodes Incorporated	SaRonix-eCera™ FK	3.686MHz	±25ppm	-20°C ~ 70°C
FK0360004	Diodes Incorporated	SaRonix-eCera™ FK	3.686MHz	±50ppm	-40°C ~ 85°C
FK0400005	Diodes Incorporated	SaRonix-eCera™ FK	4MHz	±25ppm	-20°C ~ 70°C
FK0400007	Diodes Incorporated	SaRonix-eCera™ FK	4MHz	±50ppm	-40°C ~ 85°C
FK0500002	Diodes Incorporated	SaRonix-eCera™ FK	5MHz	±50ppm	-40°C ~ 85°C
FK0530001	Diodes Incorporated	SaRonix-eCera™ FK	5.33MHz	±50ppm	-40°C ~ 85°C
FK0610001	Diodes Incorporated	SaRonix-eCera™ FK	6.14MHz	±25ppm	-20°C ~ 70°C
FK0670001	Diodes Incorporated	SaRonix-eCera™ FK	6.758MHz	±25ppm	-20°C ~ 70°C
FK0800004	Diodes Incorporated	SaRonix-eCera™ FK	8MHz	±50ppm	-40°C ~ 85°C
FK0810001	Diodes Incorporated	SaRonix-eCera™ FK	8.192MHz	±50ppm	-20°C ~ 70°C
FK0810002	Diodes Incorporated	SaRonix-eCera™ FK	8.192MHz	±25ppm	-20°C ~ 70°C
FK0810003	Diodes Incorporated	SaRonix-eCera™ FK	8.192MHz	±50ppm	-40°C ~ 85°C
FK1000006	Diodes Incorporated	SaRonix-eCera™ FK	10MHz	±50ppm	-20°C ~ 70°C
FK1000007	Diodes Incorporated	SaRonix-eCera™ FK	10MHz	±25ppm	-20°C ~ 70°C
FK1000008	Diodes Incorporated	SaRonix-eCera™ FK	10MHz	±50ppm	-40°C ~ 85°C
FK1200010	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±50ppm	-20°C ~ 70°C
FK1200013	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±25ppm	-20°C ~ 70°C

FK1220006	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±25ppm	-20°C ~ 70°C
FK1220007	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-20°C ~ 70°C
FK1220008	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±25ppm	-20°C ~ 70°C
FK1220009	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1300008	Diodes Incorporated	SaRonix-eCera™ FK	13MHz	±50ppm	-20°C ~ 70°C
FK1300010	Diodes Incorporated	SaRonix-eCera™ FK	13MHz	±50ppm	-20°C ~ 70°C
FK1430004	Diodes Incorporated	SaRonix-eCera™ FK	14.318MHz	±50ppm	-20°C ~ 70°C
FK1600003	Diodes Incorporated	SaRonix-eCera™ FK	16MHz	±25ppm	-20°C ~ 70°C
FK1600004	Diodes Incorporated	SaRonix-eCera™ FK	16MHz	±50ppm	-20°C ~ 70°C
FK1600005	Diodes Incorporated	SaRonix-eCera™ FK	16MHz	±50ppm	-40°C ~ 85°C
FK1630003	Diodes Incorporated	SaRonix-eCera™ FK	16.384MHz	±50ppm	-20°C ~ 70°C
FK1630004	Diodes Incorporated	SaRonix-eCera™ FK	16.384MHz	±25ppm	-20°C ~ 70°C
FK1630005	Diodes Incorporated	SaRonix-eCera™ FK	16.384MHz	±50ppm	-40°C ~ 85°C
FK1840001	Diodes Incorporated	SaRonix-eCera™ FK	18.432MHz	±50ppm	-20°C ~ 70°C
FK1840002	Diodes Incorporated	SaRonix-eCera™ FK	18.432MHz	±25ppm	-20°C ~ 70°C
FK1840003	Diodes Incorporated	SaRonix-eCera™ FK	18.432MHz	±50ppm	-40°C ~ 85°C
FK1940001	Diodes Incorporated	SaRonix-eCera™ FK	19.44MHz	±50ppm	-20°C ~ 70°C
FK1940002	Diodes Incorporated	SaRonix-eCera™ FK	19.44MHz	±25ppm	-20°C ~ 70°C
FK1940004	Diodes Incorporated	SaRonix-eCera™ FK	19.44MHz	±50ppm	-40°C ~ 85°C
FK2000022	Diodes Incorporated	SaRonix-eCera™ FK	20MHz	±50ppm	-20°C ~ 70°C
FK2000023	Diodes Incorporated	SaRonix-eCera™ FK	20MHz	±25ppm	-20°C ~ 70°C
FK2000025	Diodes Incorporated	SaRonix-eCera™ FK	20MHz	±50ppm	-40°C ~ 85°C
FK2400012	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±50ppm	-20°C ~ 70°C
FK2400013	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-20°C ~ 70°C
FK2400014	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±50ppm	-40°C ~ 85°C

Product Parameters

ProductSeries	NX7SA
Family	XO
Output Logic	CMOS/LVPECL/LVDS/HCSL/CML (Selectable)
Supply Voltage (V)	3.3, 2.5
Freq Range (MHz)	5 to 1000
Jitter RMS (ps)	<1
PkgType	Ceramic Seam
Package Size (mm)	7.0 x 5.0 x 2.0
Pads	6

NX70SA系列具有極低抖動能力的高性能可編程晶體振蕩器,NX7021E0125.000000,可編程晶振,差分晶體振蕩器
產品參數：

產品系列 NX7SA

家庭 XO 貼片振蕩器

輸出邏輯 CMOS/LVPECL/LVDS/HCSL/CML（可選）

電源電壓 3.3V, 2.5V

頻率范圍 5到1000MHz

抖動均方根 (ps) <1

包裝類型陶瓷縫

包裝尺寸 7.0x5.0x2.0mm

墊 6腳

FK2450008	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±50ppm	-20°C ~ 70°C
FK2450009	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450010	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±50ppm	-40°C ~ 85°C
FK2500018	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-20°C ~ 70°C
FK2500019	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-20°C ~ 70°C
FK2500026	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FK2600016	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-20°C ~ 70°C
FK2600017	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±25ppm	-20°C ~ 70°C
FK2600019	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-40°C ~ 85°C
FK2600020	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±25ppm	-20°C ~ 70°C
FK2600024	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-20°C ~ 70°C
FK2600027	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±20ppm	-20°C ~ 70°C
FK2600028	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-40°C ~ 85°C
FK2700001	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±25ppm	-20°C ~ 70°C
FK2700015	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±50ppm	-20°C ~ 70°C
FK2700016	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±25ppm	-20°C ~ 70°C
FK2700017	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±20ppm	-20°C ~ 70°C
FK2700018	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±50ppm	-40°C ~ 85°C
FK2700021	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±50ppm	-20°C ~ 70°C
FK2820001	Diodes Incorporated	SaRonix-eCera™ FK	28.224MHz	±25ppm	-20°C ~ 70°C
FK3000001	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3000003	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±25ppm	-20°C ~ 70°C
FK3000004	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3000005	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3000006	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-40°C ~ 85°C

NX70SA系列具有極低抖動能力的高性能可編程晶體振蕩器,NX7021E0125.000000,可編程晶振,差分晶體振蕩器

NX70SA	CMOS/LVPECL/LVDS/HCSL/CML（可選）	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm 雙頻邏輯可編程 XO
NX70SB	CMOS/LVPECL/LVDS/HCSL/CML（可選）	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm 四頻和邏輯可編程 XO
NX71SA	CMOS	3.32.5	5 到 250	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm CMOS 2 頻可編程 XO
NX71SB	CMOS	3.32.5	5 到 250	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm CMOS 四頻可編程XO
NX72SA	LVPECL差分晶振	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVPECL 2頻可編程XO
NX72SB	LVPECL	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVPECL 4頻可編程XO
NX73SA	LVDS	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVDS 2 頻可編程 XO
NX73SB	LVDS	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVDS 4 頻可編程 XO
NX74SA	HCSL	3.32.5	5 至 212.5	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm HCSL 2頻可編程XO
NX74SB	HCSL	3.32.5	5 至 212.5	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm HCSL 四頻可編程XO

FK3000007	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3040002	Diodes Incorporated	SaRonix-eCera™ FK	30.4MHz	±25ppm	-20°C ~ 70°C
FK3120001	Diodes Incorporated	SaRonix-eCera™ FK	31.25MHz	±50ppm	-40°C ~ 85°C
FK3270001	Diodes Incorporated	SaRonix-eCera™ FK	32.768MHz	±25ppm	-20°C ~ 70°C
FK3300006	Diodes Incorporated	SaRonix-eCera™ FK	33MHz	±50ppm	-20°C ~ 70°C
FK3300007	Diodes Incorporated	SaRonix-eCera™ FK	33MHz	±25ppm	-20°C ~ 70°C
FK3300008	Diodes Incorporated	SaRonix-eCera™ FK	33MHz	±50ppm	-40°C ~ 85°C
FK3330005	Diodes Incorporated	SaRonix-eCera™ FK	33.333MHz	±50ppm	-20°C ~ 70°C
FK3330006	Diodes Incorporated	SaRonix-eCera™ FK	33.333MHz	±25ppm	-20°C ~ 70°C
FK3330008	Diodes Incorporated	SaRonix-eCera™ FK	33.333MHz	±50ppm	-20°C ~ 70°C
FK3330011	Diodes Incorporated	SaRonix-eCera™ FK	33.333MHz	±50ppm	-20°C ~ 70°C
FK3530001	Diodes Incorporated	SaRonix-eCera™ FK	35.238MHz	±50ppm	-20°C ~ 70°C
FK3530002	Diodes Incorporated	SaRonix-eCera™ FK	35.238MHz	±25ppm	-20°C ~ 70°C
FK3530003	Diodes Incorporated	SaRonix-eCera™ FK	35.238MHz	±50ppm	-40°C ~ 85°C
FK3680001	Diodes Incorporated	SaRonix-eCera™ FK	36.864MHz	±50ppm	-20°C ~ 70°C
FK3680002	Diodes Incorporated	SaRonix-eCera™ FK	36.864MHz	±25ppm	-20°C ~ 70°C
FK3680003	Diodes Incorporated	SaRonix-eCera™ FK	36.864MHz	±50ppm	-40°C ~ 85°C
FK3840011	Diodes Incorporated	SaRonix-eCera™ FK	38.4MHz	±50ppm	-20°C ~ 70°C
FK4000031	Diodes Incorporated	SaRonix-eCera™ FK	40MHz	±50ppm	-20°C ~ 70°C
FK4000032	Diodes Incorporated	SaRonix-eCera™ FK	40MHz	±25ppm	-20°C ~ 70°C
FK4000038	Diodes Incorporated	SaRonix-eCera™ FK	40MHz	±25ppm	-20°C ~ 70°C
FK4800009	Diodes Incorporated	SaRonix-eCera™ FK	48MHz	±50ppm	-20°C ~ 70°C
FK4800010	Diodes Incorporated	SaRonix-eCera™ FK	48MHz	±25ppm	-20°C ~ 70°C
FK4800011	Diodes Incorporated	SaRonix-eCera™ FK	48MHz	±50ppm	-40°C ~ 85°C
FK4910001	Diodes Incorporated	SaRonix-eCera™ FK	49.152MHz	±50ppm	-20°C ~ 70°C

NX70SA系列具有極低抖動能力的高性能可編程晶體振蕩器,NX7021E0125.000000,可編程晶振,差分晶體振蕩器

可編程N(yùn)X晶體振蕩器XO系列將微型 AT 切割晶體諧振器和高度靈活的振蕩器 IC 集成到標準7.0 x 5.0mm和5.0 x 3.2、3.2x2.5和2.5x2.0 mm陶瓷封裝中。

可編程振蕩器IC專為網絡、存儲、視頻和其他嵌入式應用等高頻和低抖動應用而設計和測試，包含一個非常低抖動的 PLL，因此可以根據您的需要生成任何頻率。振蕩器IC的靈活性還支持這些XO系列的多種輸出頻率。每種封裝尺寸都提供雙頻和四頻選項，從而為支持平臺設計的選項提供了易于配置的解決方案。

我們的NX晶體振蕩器系列結合了高性能和靈活性，可提供抖動性能低至0.3ps (RMS) 的高頻輸出。我們的 NX 時鐘不僅非常適合網絡和電信應用，而且非常適合需要高性能時鐘源的應用。
