UFQ322/32系列超低抖動LVPECL晶體振蕩器
來源：http://www.ytxiaoping.cn 作者：金洛鑫電子 2022年07月11

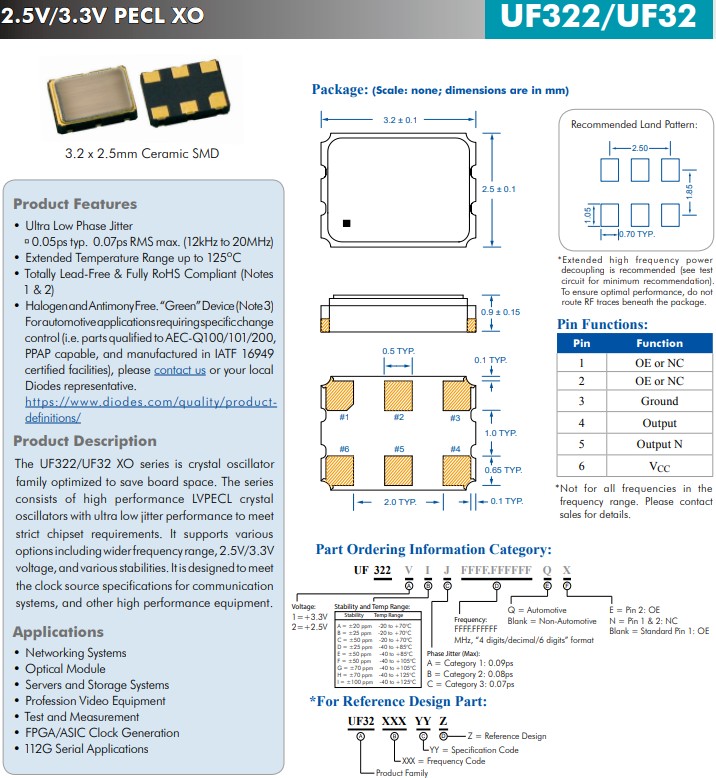

亞陶晶振UF322/UF32 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。UFQ322/32系列，小體積尺寸3.2x2.5mm、超低抖動LVPECL晶體振蕩器該系列由具有超低抖動性能的高性能LVPECL差分晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
.JPG)
.JPG)
特征：
超低相位抖動
0.05ps 典型值。0.07ps RMS最大值。（12kHz至20MHz）
擴展溫度范圍高達 125oC
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G 串行應用
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| FRBST1061 | Diodes Incorporated | SaRonix-eCera™ FR | 61.44MHz | ±50ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| KM3270004 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| FK2500021 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FN4000159 | Diodes Incorporated | SaRonix-eCera™ FN | 40MHz | ±50ppm |
| FK0800003 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm |

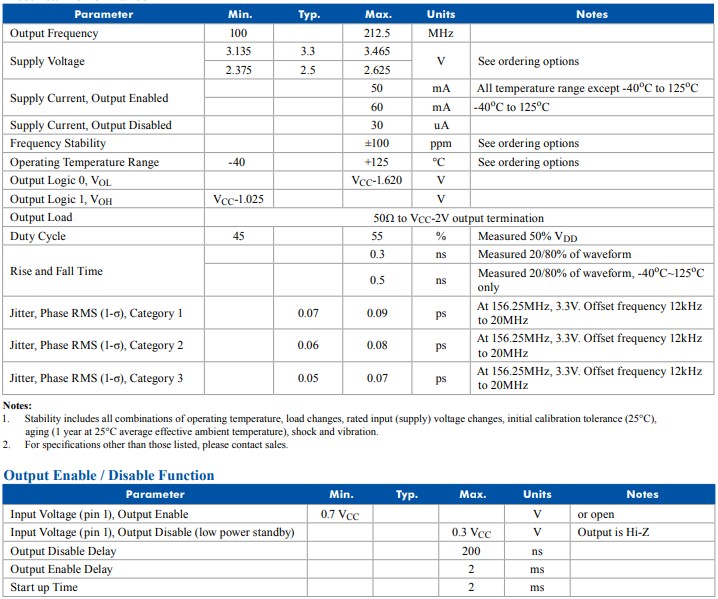

Product Parameters
| Subfamily | Ultra Low Jitter XO |
|---|---|
| Product Series | UFQ3 |
| Compliance(Only Automotive supports PPAP) | Automotive |
| Freq Range (MHz) | 100 to 212.5 |
| Jitter RMS (ps) | 0.07 to 0.09 |
| Stability (PPM) | 20 to 100 |
| Package Size (mm) | 3.2 x 2.5 x 0.9 |
| PkgType | Ceramic Seam |
| Output Logic | LVPECL |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
產品參數：
產品參數：
亞科 超低抖動 XO
產品系列 UFQ3
合規性（僅汽車支持PPAP）汽車
頻率范圍 100MHz至212.5MHz
抖動均方根 (ps) 0.07至0.09
穩定性 (PPM) 20到100
包裝尺寸 3.2x2.5x0.9mm貼片晶振
包裝類型 陶瓷縫
輸出邏輯 LVPECL
電源電壓 3.3V, 2.5V
墊 6腳
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm |
| FNSAS2075 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 75MHz | ±50ppm |
| FD6250012 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
| KN3270028 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270032 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KN3270031 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270042 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KN3270022 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270036 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KN3270032 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KN3270033 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270034 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KX3211B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3211C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3211E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3211G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3213G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3211H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KD3270043 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270026 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KN3270034 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KD3270012 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KK3270040 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
我們的汽車兼容晶體振蕩器 (XO) 旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格 IATF 16949 標準認證的設施中制造的，并且能夠根據 VDA6.3 進行客戶審核。這些零件均受 PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。
此外，所有符合汽車標準的石英晶體振蕩器 (XO) 均已使用 AECQ-200 和 QAP-81 進行了認證，以涵蓋石英諧振器和 XO IC，而不是使用 AEC-Q100（僅針對 IC 定義）。我們計劃在 2021 年開始為我們新的符合汽車標準的 XO 產品逐步采用 AECQ-104 認證標準，但它不會將之前符合 AECQ-200 + QAP-81 的產品重新認證為 AEC-Q104（AECQ- 200 + QAP-81 資格標準和 AECQ-0104 資格標準是測試數量和添加 X 射線檢查）。
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
| KK3270042 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270044 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KN3270027 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KD3270033 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270030 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KD3270039 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270023 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| FNC500129 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| KN3270036 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KN3270029 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KX2511B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2511C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2511E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2511H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2513C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2513E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2513H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2513B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270038 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270025 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KX2513A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KD3270041 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270024 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
UFQ252/22 20~100 2.5x2.0x0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LV-PECL差分晶振
UFQ252/22 20~100 2.5x2.0x0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LV-PECL差分晶振
UFQ253/23 20~100 2.5x2.0x0.8 LVDS 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVDS晶體振蕩器
UFQ254/24 20~100 2.5x2.0x0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動HCLS晶體振蕩器
UFQ322/32 20~100 3.2x2.5x0.9 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ323/33 20~100 3.2x2.5x0.9 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ324/34 20~100 3.2x2.5x0.9 HCSL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動HCLS晶體振蕩器
UFQ502/52 20~100 5.0x3.2x1.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVPECL晶體振蕩器
UFQ503/53 20~100 5.0x3.2x1.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVDS晶體振蕩器
UFQ504/54 20~100 5.0x3.2x1.2 HCSL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動HCLS晶體振蕩器
UFQ702/72 20~100 7.0x5.0x1.4 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVPECL晶體振蕩器
UFQ703 / 73 20~100 7.0x5.0x1.4 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVDS晶體振蕩器
UFQ704 / 74 20~100 7.0x5.0x1.4 HCSL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動HCLS晶體振蕩器
