- 規格型號：4455532
- 頻率：106.25 MHz
- 尺寸：7050mm
- 產品描述：531BC106M250DG|移動設備晶振|Si531智能手機晶振|7050振蕩器,適配平板電腦,智能手表等移動設備,低功耗設計,高穩定性石英晶體,7050封裝,折疊屏,衛星通信

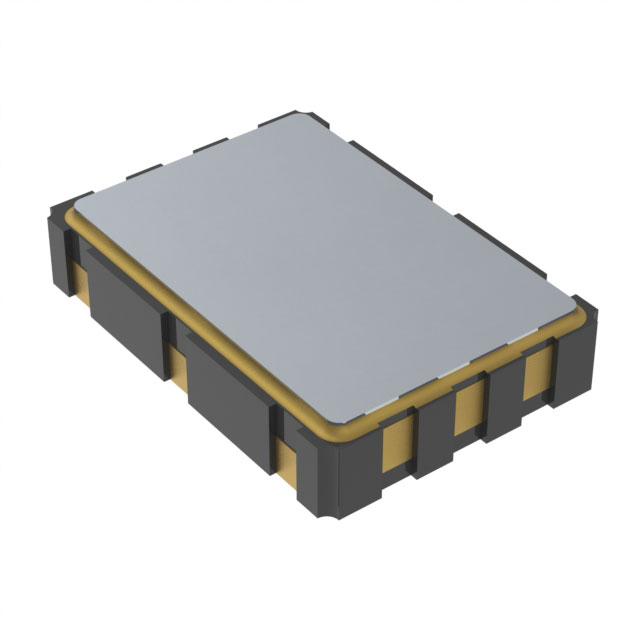

531BC106M250DG|移動設備晶振|Si531智能手機晶振|7050振蕩器
.png)
.png)
531BC106M250DG|移動設備晶振|Si531智能手機晶振|7050振蕩器
531BC106M250DG是Si531系列中專為移動通信設備晶振打造的智能手機晶振,采用7050封裝規格(7.0mm×5.0mm),核心頻率精準鎖定106.25MHz,完美契合智能手機等移動設備對高頻時鐘信號的需求.作為關鍵頻率控制元件,它能為手機的基帶芯片,射頻模塊,處理器提供穩定時序基準,保障5G通信信號傳輸,高清視頻拍攝,多任務運行等功能的流暢性.其7050封裝在實現小型化的同時,具備出色的散熱性能,可適配智能手機內部緊湊的PCB布局,避免因空間限制影響元件性能,且參數一致性經過嚴格校準,無需額外調試即可快速集成到華為,蘋果,小米等主流品牌的智能手機硬件平臺中.
.png)
.png)
531BC106M250DG|移動設備晶振|Si531智能手機晶振|7050振蕩器
| 原廠型號 Original model ： | 531BC106M250DG | 品牌 brand ： | Skyworks晶振 |
| Manufacturer品牌 | Skyworks晶振 | Operating Temperature溫度 | -40°C ~ 85°C |
| Series型號 | Si531 | Current - Supply (Max) | 98mA |
| Type 類型 | XO (Standard) | Package Height高度 | 1.8mm |
| Frequency 頻率 | 106.25 MHz | Termination 腳位 | 6 pads |
| 輸出方式 Output： | LVDS差分晶振 | Package Type 封裝類型 | 6-SMD |
| Voltage - Supply電壓 | 3.3V | Packaging 包裝 | Tape and Reel |
| Frequency Stability頻率穩定度 | ±7ppm | 安裝方式 Installation ： | Surface mount |
| Size / Dimension 尺寸 | 7.00mm x 5.00mm | 最小包裝數 MPQ ： | 1000 |
.png)
.png)
531BC106M250DG|移動設備晶振|Si531智能手機晶振|7050振蕩器
531BC106M250DG|移動設備晶振|Si531智能手機晶振|7050振蕩器
| 510KBA28M6363BAG | Skyworks | Si510 | XO (Standard) | 28.6363 MHz | CMOS | 1.8V | ±25ppm |
| 511BBA106M250BAG | Skyworks晶振 | Si511 | XO (Standard) | 106.25 MHz | LVDS | 3.3V | ±25ppm |
| 510KCA25M0000BAG | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 1.8V | ±20ppm |
| 510KCB25M0000BAG | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 1.8V | ±20ppm |
| 510CCA25M0000BAG | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±20ppm |
| 510CCA100M000BAG | Skyworks | Si510 | XO (Standard) | 100 MHz | CMOS | 3.3V | ±20ppm |
| 511ABA156M250BAG | Skyworks | Si511 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 510CBA50M0000AAG | Skyworks | Si510 | XO (Standard) | 50 MHz | CMOS | 3.3V | ±25ppm |
| 510BBA156M250AAG | Skyworks | Si510 | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 511BBA148M500AAG | Skyworks | Si511 | XO (Standard) | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 511BBA156M250AAG | Skyworks | Si511 | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 510ABA156M250AAG | Skyworks | Si510 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 511FBA125M000AAG | Skyworks | Si511 | XO (Standard) | 125 MHz | LVDS | 2.5V | ±25ppm |
| 511FBA100M000AAG | Skyworks | Si511 | XO (Standard) | 100 MHz | LVDS | 2.5V | ±25ppm |
| 510CCA25M0000AAG | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±20ppm |
| 510DBA100M000BAG | Skyworks | Si510 | XO (Standard) | 100 MHz | HCSL | 3.3V | ±25ppm |
| 511FBA200M000AAG | Skyworks | Si511 | XO (Standard) | 200 MHz | LVDS | 2.5V | ±25ppm |
| 510BBA200M000AAG | Skyworks | Si510 | XO (Standard) | 200 MHz | LVDS | 3.3V | ±25ppm |
| 510ABA212M500AAG | Skyworks | Si510 | XO (Standard) | 212.5 MHz | LVPECL | 3.3V | ±25ppm |
| 510FBA200M000AAG | Skyworks | Si510 | XO (Standard) | 200 MHz | LVDS | 2.5V | ±25ppm |
| 510BAA133M333BAG | Skyworks | Si510 | XO (Standard) | 133.333 MHz | LVDS | 3.3V | ±50ppm |
| 511FCA125M000BAG | Skyworks | Si511 | XO (Standard) | 125 MHz | LVDS | 2.5V | ±20ppm |
| 511JBA125M000AAG | Skyworks | Si511 | XO (Standard) | 125 MHz | LVDS | 1.8V | ±25ppm |
| 510DCA100M000AAG | Skyworks | Si510 | XO (Standard) | 100 MHz | HCSL | 3.3V | ±20ppm |
| 511ACA156M250CAG | Skyworks | Si511 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 511BCA100M000BAG | Skyworks | Si511 | XO (Standard) | 100 MHz | LVDS | 3.3V | ±20ppm |
| 511ABA25M0000AAG | Skyworks | Si511 | XO (Standard) | 25 MHz | LVPECL | 3.3V | ±25ppm |
| 540AAA100M000BBG | Skyworks | Si540 | XO (Standard) | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 514KCC000887BAG | Skyworks | Si514 | XO (Standard) | 24 MHz | CMOS | 1.8V | ±20ppm |
| 530CA25M0000DG | Skyworks | Si530 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| 530CA28M6000DG | Skyworks | Si530 | XO (Standard) | 28.6 MHz | CMOS | 3.3V | ±50ppm |
| 540AAA156M250BBG | Skyworks | Si540 | XO (Standard) | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
| 514BBC000932BAG | Skyworks | Si514 | XO (Standard) | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 530GB25M0000DG | Skyworks | Si530 | XO (Standard) | 25 MHz | CMOS | 2.5V | ±20ppm |
| 531EA200M000DG | Skyworks | Si531 | XO (Standard) | 200 MHz | LVPECL | 2.5V | ±50ppm |
| 514GBB000118AAG | Skyworks | Si514 | XO (Standard) | 156.25 MHz | CMOS | 2.5V | ±25ppm |
| 565GAA250M000BBG | Skyworks | Si565 | VCXO | 250 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 550CE100M000DG | Skyworks | Si550 | VCXO | 100 MHz | CMOS | 3.3V | ±20ppm |
| 564BAAD000115BBG | Skyworks | Si564 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 531FC156M250DG | Skyworks | Si531 | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 530FC200M000DG | Skyworks | Si530 | XO (Standard) | 200 MHz | LVDS | 2.5V | ±7ppm |
| 514FAA000115BAG | Skyworks | Si514 | XO (Standard) | 125 MHz | LVDS | 2.5V | ±50ppm |
| 569DABA001908BBG | Skyworks | Si569 | VCXO | 1.28127409 GHz | CML | 1.8V, 2.5V, 3.3V | ±20ppm |
| 510CBA125M000AAGR | Skyworks | Si510 | XO (Standard) | 125 MHz | CMOS | 3.3V | ±25ppm |
| 510GBA100M000BAG | Skyworks | Si510 | XO (Standard) | 100 MHz | CMOS | 2.5V | ±25ppm |
| 510CBA25M0000AAG | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| 510KCA25M0000BAGR | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 1.8V | ±20ppm |
| 510FBA200M000AAGR | Skyworks | Si510 | XO (Standard) | 200 MHz | LVDS | 2.5V | ±25ppm |
| 510KBA25M0000BAG | Skyworks | Si510 | XO (Standard) | 25 MHz | CMOS | 1.8V | ±25ppm |
| 510BBA106M250BAG | Skyworks | Si510 | XO (Standard) | 106.25 MHz | LVDS | 3.3V | ±25ppm |
| 510FBA74M2500BAG | Skyworks | Si510 | XO (Standard) | 74.25 MHz | LVDS | 2.5V | ±25ppm |
| 511FBA74M2500BAG | Skyworks | Si511 | XO (Standard) | 74.25 MHz | LVDS | 2.5V | ±25ppm |
| 510BBA74M2500BAG | Skyworks | Si510 | XO (Standard) | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 510KCA100M000BAG | Skyworks | Si510 | XO (Standard) | 100 MHz | CMOS | 1.8V | ±20ppm |
| 511FBA000110AAG | Skyworks | Si511 | XO (Standard) | 148.35165 MHz | LVDS | 2.5V | ±25ppm |
| 510FBA156M250AAG | Skyworks | Si510 | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| 510ABA155M520AAG | Skyworks | Si510 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V | ±25ppm |
| 511ABA155M520AAG | Skyworks | Si511 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V | ±25ppm |
| 510FBA74M2500AAG | Skyworks | Si510 | XO (Standard) | 74.25 MHz | LVDS | 2.5V | ±25ppm |
| 510ABA200M000BAG | Skyworks | Si510 | XO (Standard) | 200 MHz | LVPECL | 3.3V | ±25ppm |
