- 規格型號：44082687
- 頻率：148.5 MHz
- 尺寸：7050mm
- 產品描述：531BC148M500DGR|Si531以太網晶振|Skyworks進口晶振|路由器晶振,工作范圍(-40℃~85℃)能應對工業車間高溫,戶外通信機柜低溫等極端環境,同時進口制造工藝帶來的高耐久性,可支持設備24小時不間斷運行

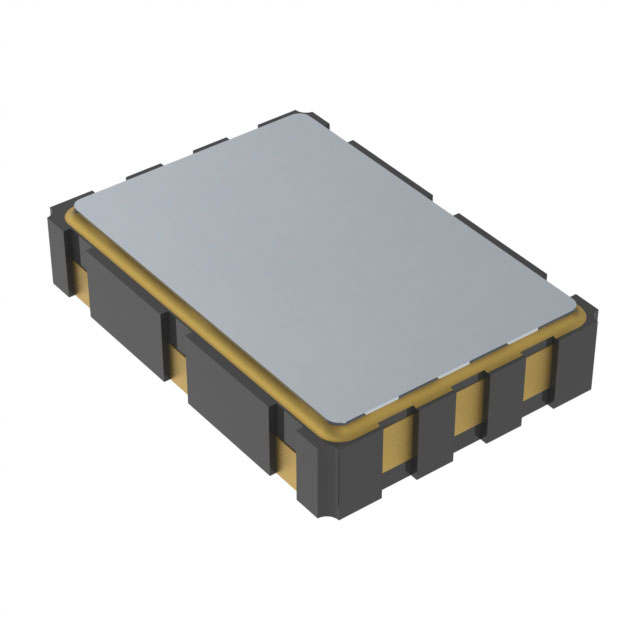

531BC148M500DGR|Si531以太網晶振|Skyworks進口晶振|路由器晶振
.png)
.png)
531BC148M500DGR|Si531以太網晶振|Skyworks進口晶振|路由器晶振
針對路由器的數據轉發,多設備互聯功能,531BC148M500DGR晶振能提供穩定的時鐘信號,確保6G路由器晶振在處理多用戶并發數據請求時,各端口數據交互時序協調.無論是家庭千兆路由器還是企業級高性能路由器,其進口品質帶來的低抖動特性(典型值低至亞皮秒級),可減少信號干擾對路由器數據處理的影響,提升路由器的數據轉發效率,避免網絡擁堵,保障用戶上網體驗.能有效抵御周邊設備(如電腦,打印機,智能家居自動化晶振)產生的電磁輻射干擾,保持時鐘信號的純凈度,避免因干擾導致的路由器網絡斷連,數據傳輸速率波動等問題,保障網絡連接的連續性與穩定性.
.png)
.png)
531BC148M500DGR|Si531以太網晶振|Skyworks進口晶振|路由器晶振
| 原廠型號 Originalmodel： | 531BC148M500DGR | 品牌brand： | Skyworks晶振 |
| Manufacturer品牌 | Skyworks晶振 | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | Si531 | Current-Supply(Max) | 98mA |
| Type類型 | XO環保無鉛晶振 | PackageHeight高度 | 1.80mm |
| Frequency頻率 | 148.5 MHz | Termination 腳位 | 6pad |
| 輸出方式 Output： | LVDS | PackageType 封裝類型 | 6-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±7ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7.00mm x 5.00mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
531BC148M500DGR|Si531以太網晶振|Skyworks進口晶振|路由器晶振
.png)
.png)
531BC148M500DGR|Si531以太網晶振|Skyworks進口晶振|路由器晶振
| 510BBA156M250BAGR | Skyworks | Si510 | XO | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511FBA000330BAGR | Skyworks | Si511 | XO | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 511BBA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511BBA125M000AAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511BBA100M000AAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511BBA200M000AAG | Skyworks | Si511 | XO | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 530BB125M000DG | Skyworks | Si530 | XO | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 531BC125M000DG | Skyworks | Si531 | XO | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 545BAA200M000BBG | Skyworks | Si545 | XO | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 570BAB000544DG | Skyworks | Si570 | XO | 156.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510BBA125M000AAGR | Skyworks | Si510 | XO | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA156M250AAGR | Skyworks | Si510 | XO | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511ABA156M250AAGR | Skyworks | Si511 | XO | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511BBA200M000BAGR | Skyworks | Si511 | XO | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510MCA50M0000AAGR | Skyworks | Si510 | XO | 50 MHz | CMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 511BCA160M000BAGR | Skyworks | Si511 | XO | 160 MHz | LVDS | 3.3V | - | -40°C ~ 85°C |
| 510KBA100M000BAG | Skyworks | Si510 | XO | 100 MHz | CMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 511BBA74M2500BAG | Skyworks | Si511 | XO | 74.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA125M000BAG | Skyworks | Si510 | XO | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511FBA125M000BAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 511BBA125M000BAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA100M000BAG | Skyworks | Si510 | XO | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511FBA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA125M000BAG | Skyworks | Si510 | XO | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510KCA125M000BAG | Skyworks | Si510 | XO | 125 MHz | CMOS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 511BBA000110BAG | Skyworks | Si511 | XO | 148.35165 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511FBA156M250BAG | Skyworks | Si511 | XO | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 511BBA148M500BAG | Skyworks | Si511 | XO | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511JBA125M000BAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 511FBA200M000BAG | Skyworks | Si511 | XO | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA200M000BAG | Skyworks | Si510 | XO | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511JBA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 511FCA25M0000BAG | Skyworks | Si511 | XO | 25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 511FCA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 511SBA156M250BAG | Skyworks | Si511 | XO | 156.25 MHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 511JBA135M000BAG | Skyworks | Si511 | XO | 135 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 511JBA200M000BAG | Skyworks | Si511 | XO | 200 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 540BAA000274BBG | Skyworks | Si540 | XO | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm | -40°C ~ 85°C |
| 530BA125M000DG | Skyworks | Si530 | XO | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 531BC106M250DG | Skyworks | Si531 | XO | 106.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 535AC100M000DG | Skyworks | Si535 | XO | 100 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 510CBA25M0000BAGR | Skyworks | Si510 | XO | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510CBA100M000BAGR | Skyworks | Si510 | XO | 100 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510CBA125M000BAGR | Skyworks | Si510 | XO | 125 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510CBA100M000AAGR | Skyworks | Si510 | XO | 100 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510GBA25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510KBA125M000BAGR | Skyworks | Si510 | XO | 125 MHz | CMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 511BBA106M250AAGR | Skyworks | Si511 | XO | 106.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510KBA28M6363BAG | Skyworks | Si510 | XO | 28.6363 MHz | CMOS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 511BBA106M250BAG | Skyworks | Si511 | XO | 106.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510KCA25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 510KCB25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 510CCA25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510CCA100M000BAG | Skyworks | Si510 | XO | 100 MHz | CMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 511ABA156M250BAG | Skyworks | Si511 | XO | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510CBA50M0000AAG | Skyworks | Si510 | XO | 50 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA156M250AAG | Skyworks | Si510 | XO | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511BBA148M500AAG | Skyworks | Si511 | XO | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 511BBA156M250AAG | Skyworks | Si511 | XO | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA156M250AAG | Skyworks | Si510 | XO | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
