- 規格型號：84832640
- 頻率：35.328 MHz
- 尺寸：7.00mm x 5.00mm
- 產品描述：CSX750VCB35.328M-UT|電控晶體振蕩器|日本Citizen晶振|通信機器晶振完美適配5G基站,光纖交換機等通信機器對時序同步的嚴苛要求,其采用緊湊型MD封裝7050,可有效減少通信信號傳輸中的干擾

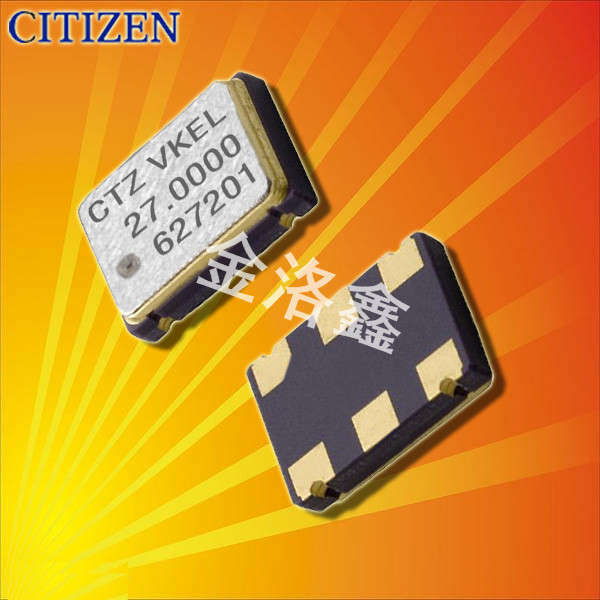

CSX750VCB35.328M-UT|電控晶體振蕩器|日本Citizen晶振|通信機器晶振
.png)
.png)
CSX750VCB35.328M-UT|電控晶體振蕩器|日本Citizen晶振|通信機器晶振
針對通信機器中信號同步的核心需求,CSX750VCB35.328M-UT電控晶體振蕩器具備三大核心優勢:一是頻率牽引范圍寬(±50ppm),可通過外部電壓精準調節頻率,快速適配不同通信頻段的時序需求,避免信號失步;二是啟動時間短(＜5ms),能在通信設備斷電重啟后迅速恢復時序功能,減少網絡中斷時間;三是抗電磁干擾(EMI)性能優異,通過內置屏蔽層設計,將外部電磁輻射對頻率的影響降低35dB,在多設備密集的通信機房中,仍能保持穩定運行.該晶振廣泛應用于4G/5G終端,數據傳輸模塊等設備,是保障通信信號高效傳輸?shù)?quot;同步紐帶".
.png)
.png)
CSX750VCB35.328M-UT|電控晶體振蕩器|日本Citizen晶振|通信機器晶振
| 原廠型號 Originalmodel： | CSX750VCB35.328M-UT | 品牌brand： | Citizen |
| Manufacturer品牌 | Citizen日本晶振 | OperatingTemperature溫度 | -20°C ~ 70°C |
| Series型號 | CSX-750V | Current-Supply(Max) | - |
| Type類型 | VCXO | PackageHeight高度 | 4.7mm |
| Frequency頻率 | 35.328 MHz | Termination 腳位 | 6pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 6-SMD |
| Voltage-Supply電壓 | 5V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±50ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7.00mm x 5.00mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
CSX750VCB35.328M-UT|電控晶體振蕩器|日本Citizen晶振|通信機器晶振
.png)
.png)
CSX750VCB35.328M-UT|電控晶體振蕩器|日本Citizen晶振|通信機器晶振
| CSX-750FBC8000000T | Citizen | CSX-750F | XO | 8 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC12000000T | Citizen | CSX-750F | XO | 12 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC24000000T | Citizen | CSX-750F | XO | 24 MHz | CMOS | 3.3V | ±100ppm |
| CSX-252FAE24000000T | Citizen | CSX-252F | XO | 24 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC3686400T | Citizen | CSX-750F | XO | 3.6864 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC4000000T | Citizen | CSX-750F | XO | 4 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC8000000T | Citizen | CSX-750F | XO | 8 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC25000000T | Citizen | CSX-750F | XO | 25 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FCC25000000T | Citizen | CSX-750F | XO | 25 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC10000000T | Citizen | CSX-750F | XO | 10 MHz | CMOS | 3.3V | ±100ppm |
| CSX-252FAE30720000T | Citizen | CSX-252F | XO | 30.72 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE10000000T | Citizen | CSX-252F | XO | 10 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE35000000T | Citizen | CSX-252F | XO | 35 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAP32768T | Citizen | CSX-252F | XO | 32.768 kHz | CMOS | 1.8V ~ 3.3V | - |
| CSX-750FCC24000000T | Citizen | CSX-750F | XO | 24 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC4000000T | Citizen | CSX-750F | XO | 4 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC27000000T | Citizen | CSX-750F | XO | 27 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FJC44000000T | Citizen | CSX-750F | XO | 44 MHz | CMOS | 3.3V | ±100ppm |
| CSX750PCC6.1760MT | Citizen | CSX-750P | XO | 6.176 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC24.7040MT | Citizen | CSX-750P | XO | 24.704 MHz | CMOS | 5V | ±100ppm |
| CSX-750FCC33333000T | Citizen | CSX-750F | XO | 33.333 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC16384000T | Citizen | CSX-750F | XO | 16.384 MHz | CMOS | 3.3V | ±100ppm |
| CSX-252FAE40000000T | Citizen | CSX-252F | XO | 40 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC35328000T | Citizen | CSX-750F | XO | 35.328 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC45000000T | Citizen | CSX-750F | XO | 45 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC44000000T | Citizen | CSX-750F | XO | 44 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-252FAE33300000T | Citizen | CSX-252F | XO | 33.3 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE12000000T | Citizen | CSX-252F | XO | 12 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE20000000T | Citizen | CSX-252F | XO | 20 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE16934400T | Citizen | CSX-252F | XO | 16.9344 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC66666000T | Citizen | CSX-750F | XO | 66.666 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC29491200T | Citizen | CSX-750F | XO | 29.4912 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC14318180T | Citizen | CSX-750F | XO | 14.31818 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FCC1843200T | Citizen | CSX-750F | XO | 1.8432 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC7372800T | Citizen | CSX-750F | XO | 7.3728 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC18432000T | Citizen | CSX-750F | XO | 18.432 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC32000000T | Citizen | CSX-750F | XO | 32 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FHB25000000T | Citizen | CSX-750F | XO | 25 MHz | CMOS | 2.5V | ±50ppm |
| CSX-750FMB24000000T | Citizen | CSX-750F | XO | 24 MHz | CMOS | 1.8V | ±50ppm |
| CSX-750FBC18432000T | Citizen | CSX-750F | XO | 18.432 MHz | CMOS | 3.3V | ±100ppm |
| CSX750VCB8.000M-UT | Citizen | CSX-750V | VCXO | 8 MHz | CMOS | 5V | ±50ppm |
| CSX750PCC19.4400MT | Citizen | CSX-750P | XO | 19.44 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC15.3600MT | Citizen | CSX-750P | XO | 15.36 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC60.0000MT | Citizen | CSX-750P | XO | 60 MHz | CMOS | 5V | ±100ppm |
| CSX750VCB24.704M-UT | Citizen | CSX-750V | VCXO | 24.704 MHz | CMOS, TTL | 5V | ±50ppm |
| CSX750VCB19.440M-UT | Citizen | CSX-750V | VCXO | 19.44 MHz | CMOS | 5V | ±50ppm |
| CSX750PCC12.3520MT | Citizen | CSX-750P | XO | 12.352 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC72.0000MT | Citizen | CSX-750P | XO | 72 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC16.3840MT | Citizen | CSX-750P | XO | 16.384 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC33.3330MT | Citizen | CSX-750P | XO | 33.333 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC66.6666MT | Citizen | CSX-750P | XO | 66.6666 MHz | CMOS | 5V | ±100ppm |
| CSX750VCB35.328M-UT | Citizen | CSX-750V | VCXO | 35.328 MHz | CMOS | 5V | ±50ppm |
| CSX750VCB32.000M-UT | Citizen | CSX-750V | VCXO | 32 MHz | CMOS | 5V | ±50ppm |
| CSX-252FAE48000000T | Citizen | CSX-252F | XO | 48 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE33000000T | Citizen | CSX-252F | XO | 33 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE27000000T | Citizen | CSX-252F | XO | 27 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC50000000T | Citizen | CSX-750F | XO | 50 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC24576000T | Citizen | CSX-750F | XO | 24.576 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC7372800T | Citizen | CSX-750F | XO | 7.3728 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC33333000T | Citizen | CSX-750F | XO | 33.333 MHz | CMOS | 3.3V | ±100ppm |
