愛普生公司是一家擁有先進生產技術和高端的生產設備，以及擁有核心競爭力的知名制造商，在產品品質上有著極大的競爭優勢,每一款產品都具備創新之特點，主要向全球世界各地提供高精度的晶振產品,旗下產品包含有源晶振，石英晶體振蕩器，無源晶振等，生產的產品經過嚴格的生產體系制作而成，其中生產的MG7050VAN晶振，SPXO振蕩器，編碼X1M000421000900，頻率00.000000兆赫，輸出WaveLVDS，供電電壓為2.97至3.63 V，尺寸(長×寬×高)7.00 × 5.00 × 1.60毫米，工作溫度-5到+85°C，頻率公差±50ppm，額外的OptionsN /，OSC TypeMulti輸出OSC(4端口)，lora模塊高性能晶振羅拉模塊專用.

愛普生晶振編碼	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1M000431000700	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M000431000800	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M000431000900	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M000431001000	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M000431001100	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
Product Number00	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1M000421000200	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M000421000300	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M000421000400	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M000421000500	MG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M000421000600	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M000421000700	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421000800	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C

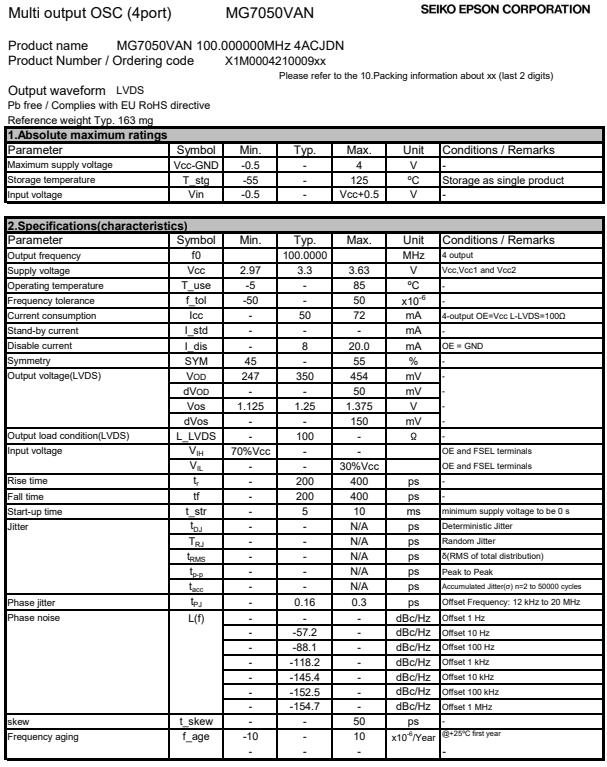

X1M000421000900	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421001000	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421001100	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421001200	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421001300	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421001400	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M000421001500	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M000421001600	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
