美國Crystek研發高頻率CVCO55FL-0200-0239晶振
來源：http://www.ytxiaoping.cn 作者：金洛鑫電子 2024年01月03
Crystek Corporation自1958年以來一直提供頻率產品，包括石英晶振，XOs(石英晶體振蕩器)，TCXOs(溫度補償晶體振蕩器)，VCOs(壓控振蕩器)和VCXOs(壓控晶體振蕩器)。Crystek有兩個部門致力于頻率控制。Crystek Crystals致力于使用石英諧振器開發和制造頻率產品。Crystek Microwave為微波行業開發頻率控制和支持產品。其他產品包括:PLL(鎖相環)合成器，RedBox VCO, RF同軸電纜組件，RF電纜連接器，批量RF同軸電纜，RF功率檢測器，濾波器，衰減器，DC塊，無源倍頻器，RFPRO(口袋參考振蕩器)，連接放大器，VCO評估板，以及基于SAW的時鐘振蕩器和VCSO。

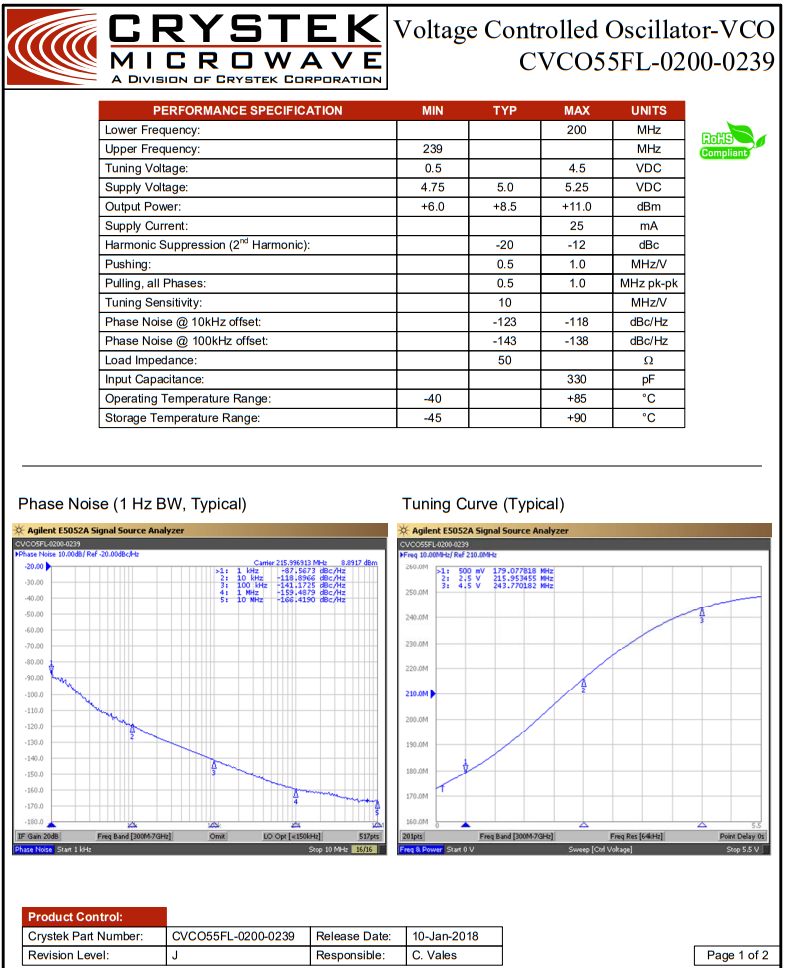

Fort Myers, FL - July 31, 2023 - Crystek's CVCO55FL-0200-0239 VCO (Voltage Controlled Oscillator) operates from 200 to 239 MHz with a control voltage range of 0.5 to 4.5 V. This VCO features typical phase noise of -123 dBc/Hz @ 10 kHz offset with excellent linearity. Output power is typically +8.5 dBm.
Engineered and manufactured in the USA, the model CVCO55FL-0200-0239 is packaged in the industry-standard 0.5 x 0.5 inch SMD package. Input voltage is 5 V, with a max current consumption of 25 mA. Pulling and Pushing are minimized to 1.0 MHz pk-pk and 1.0 MHz/V, respectively. Second harmonic suppression is -20 dBc typical.
The CVCO55FL-0200-0239 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
Engineered and manufactured in the USA, the model CVCO55FL-0200-0239 is packaged in the industry-standard 0.5 x 0.5 inch SMD package. Input voltage is 5 V, with a max current consumption of 25 mA. Pulling and Pushing are minimized to 1.0 MHz pk-pk and 1.0 MHz/V, respectively. Second harmonic suppression is -20 dBc typical.
The CVCO55FL-0200-0239 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
佛羅里達州Fort Myers - 2023年7月31日- Crystek的CVCO55FL-0200-0239 VCO(電壓控制振蕩器)工作范圍為200至239 MHz，控制電壓范圍為0.5至4.5 V。該壓控振蕩器的典型相位噪聲為-123 dBc/Hz @ 10 kHz偏置，具有出色的線性度。輸出功率通常為+8.5 dBm。
CVCO55FL-0200-0239在美國設計和制造，采用行業標準的0.5 x 0.5英寸SMD晶振。輸入電壓為5v，最大電流消耗為25ma。拉力和推力分別最小化到1.0 MHz pk-pk和1.0 MHz/V。二次諧波抑制典型值為-20 dBc。
CVCO55FL-0200-0239是數字無線電設備、固定無線接入、衛星通信系統和基站等應用的理想選擇。
| Crystek原廠編碼 | 生產商品牌 | 型號 | 類型 | 頻率 | 電源電壓 |
| CVHD-037X-80 | Crystek | CVHD-037X | VCXO | 80 MHz | 3.3V |
| CVHD-950X-122.880 | Crystek | CVHD-950 | VCXO | 122.88 MHz | 3.3V |
| CVHD-950-122.880 | Crystek | CVHD-950 | VCXO | 122.88 MHz | 3.3V |
| CVHD-037X-100 | Crystek | CVHD-037X | VCXO | 100 MHz | 3.3V |
| CVHD-950-100.000 | Crystek | CVHD-950 | VCXO | 100 MHz | 3.3V |
| CVSS-945-100.000 | Crystek | CVSS-945 | VCXO | 100 MHz | 5V |
| CVSS-945X-100.000 | Crystek | CVSS-945 | VCXO | 100 MHz | 5V |
| CVHD-950-80.000 | Crystek | CVHD-950 | VCXO | 80 MHz | 3.3V |
| CVSS-945-125.000 | Crystek | CVSS-945 | VCXO | 125 MHz | 5V |
| CVHD-037X-122.88 | Crystek | CVHD-037X | VCXO | 122.88 MHz | 3.3V |
| CVPD-037X-153.6 | Crystek | CVPD-037X | VCXO | 153.6 MHz | 3.3V |
| CVHD-950-125.000 | Crystek | CVHD-950 | VCXO | 125 MHz | 3.3V |
| CVHD-950-50.000 | Crystek | CVHD-950 | VCXO | 50 MHz | 3.3V |
| CVSS-945-122.880 | Crystek | CVSS-945 | VCXO | 122.88 MHz | 5V |
| CVSS-945-80.000 | Crystek | CVSS-945 | VCXO | 80 MHz | 5V |
| CVHD-950X-100 | Crystek | CVHD-950 | VCXO | 100 MHz | 3.3V |
| CVHD-037X-125 | Crystek | CVHD-037X | VCXO | 125 MHz | 3.3V |
| 603281 | Crystek | - | VCXO | 122.88 MHz | - |
| CVSS-945-50.000 | Crystek | CVSS-945 | VCXO | 50 MHz | 5V |
| CVHD-950-54.000 | Crystek | CVHD-950 | VCXO | 54 MHz | 3.3V |
| CVHD-952-148.500 | Crystek | CVHD-952 | VCXO | 148.5 MHz | 3.3V |
| CVHD-952-153.600 | Crystek | CVHD-952 | VCXO | 153.6 MHz | 3.3V |
| CVXO-018TX-50-4.096 | Crystek | CVXO-018T | VCXO | 4.096 MHz | 3.3V |
| CVXO-018TX-50-8 | Crystek | CVXO-018T | VCXO | 8 MHz | 3.3V |
| CVXO-018TX-50-8.192 | Crystek | CVXO-018T | VCXO | 8.192 MHz | 3.3V |
| CVXO-016TX-50-34.368 | Crystek | CVXO-016T | VCXO | 34.368 MHz | 5V |
| CVXO-018TX-50-32 | Crystek | CVXO-018T | VCXO | 32 MHz | 3.3V |
| CVXO-018TX-50-32.768 | Crystek | CVXO-018T | VCXO | 32.768 MHz | 3.3V |
| CVXO-018TX-50-34.56 | Crystek | CVXO-018T | VCXO | 34.56 MHz | 3.3V |
| CVXO-018TX-50-35.328 | Crystek | CVXO-018T | VCXO | 35.328 MHz | 3.3V |
| CVXO-016TX-50-35.328 | Crystek | CVXO-016T | VCXO | 35.328 MHz | 5V |
| CVXO-016TX-50-44.736 | Crystek | CVXO-016T | VCXO | 44.736 MHz | 5V |
| CVXO-018TX-50-38.88 | Crystek | CVXO-018T | VCXO | 38.88 MHz | 3.3V |
| CVXO-018TX-50-44.736 | Crystek | CVXO-018T | VCXO | 44.736 MHz | 3.3V |
| CVXO-018TX-25-10.0 | Crystek | CVXO-018T | VCXO | 10 MHz | 3.3V |
| CVXO-018TX-50-51.84 | Crystek | CVXO-018T | VCXO | 51.84 MHz | 3.3V |
| CVPD-037X-100 | Crystek | CVPD-037X | VCXO | 100 MHz | 3.3V |
| CVHD-950-60.000 | Crystek | CVHD-950 | VCXO | 60 MHz | 3.3V |
| 601964 | Crystek | - | VCXO | 100 MHz | - |
| 602019 | Crystek | - | VCXO | 80 MHz | - |
| CVHD-950-74.250 | Crystek | CVHD-950 | VCXO | 74.25 MHz | 3.3V |
| CVHD-950-74.175800 | Crystek | CVHD-950 | VCXO | 74.1758 MHz | 3.3V |
| CVHD-950-70.000 | Crystek | CVHD-950 | VCXO | 70 MHz | 3.3V |
| 602017 | Crystek | - | VCXO | 122.88 MHz | - |
| CVPD-037X-122.88 | Crystek | CVPD-037X | VCXO | 122.88 MHz | 3.3V |
| CVPD-920-61.440 | Crystek | CVPD-920 | VCXO | 61.44 MHz | 3.3V |
| CVPD-920-74.1758 | Crystek | CVPD-920 | VCXO | 74.1758 MHz | 3.3V |
| CVPD-920-74.250 | Crystek | CVPD-920 | VCXO | 74.25 MHz | 3.3V |
| CVPD-920-80 | Crystek | CVPD-920 | VCXO | 80 MHz | 3.3V |
| CVPD-034-50-77.76 | Crystek | CVPD-034 | VCXO | 77.76 MHz | 3.3V |
| CVPD-037X-156.250 | Crystek | CVPD-037X | VCXO | 156.25 MHz | 3.3V |
| CVPD-034X-50-77.76 | Crystek | CVPD-034 | VCXO | 77.76 MHz | 3.3V |
| CVPD-920-100 | Crystek | CVPD-920 | VCXO | 100 MHz | 3.3V |
| CVPD-034-50-156.25 | Crystek | CVPD-034 | VCXO | 156.25 MHz | 3.3V |
| CVPD-034X-50-155.52 | Crystek | CVPD-034 | VCXO | 155.52 MHz | 3.3V |
| CVPD-034X-50-156.25 | Crystek | CVPD-034 | VCXO | 156.25 MHz | 3.3V |
| CVPD-034-50-161.1328 | Crystek | CVPD-034 | VCXO | 161.1328 MHz | 3.3V |
| CVPD-034X-50-166.6286 | Crystek | CVPD-034 | VCXO | 166.6286 MHz | 3.3V |
| CVPD-034X-50-167.3316 | Crystek | CVPD-034 | VCXO | 167.3316 MHz | 3.3V |
| CVPD-034X-50-161.1328 | Crystek | CVPD-034 | VCXO | 161.1328 MHz | 3.3V |
| CVPD-034-50-155.52 | Crystek | CVPD-034 | VCXO | 155.52 MHz | 3.3V |
| CVHD-952-148.3516 | Crystek | CVHD-952 | VCXO | 148.3516 MHz | 3.3V |
| CVPD-940X-156.25 | Crystek | CVPD-940 | VCXO | 156.25 MHz | 3.3V |
| CVPD-940X-161.1328 | Crystek | CVPD-940 | VCXO | 161.1328 MHz | 3.3V |
| CVPD-940X-166.6286 | Crystek | CVPD-940 | VCXO | 166.6286 MHz | 3.3V |
| CVPD-940X-167.3316 | Crystek | CVPD-940 | VCXO | 167.3316 MHz | 3.3V |
| CVPD-940X-77.760 | Crystek | CVPD-940 | VCXO | 77.76 MHz | 3.3V |
| CVPD-940X-155.520 | Crystek | CVPD-940 | VCXO | 155.52 MHz | 3.3V |
| CVPD-940X-212.500 | Crystek | CVPD-940 | VCXO | 212.5 MHz | 3.3V |
| CRBSVS-02-80.000 | Crystek | CRBSVS, RedBox | VCXO | 80 MHz | 5V |
| CVPD-970X-622.080 | Crystek | CVPD-970 | VCXO | 622.08 MHz | 3.3V |
| CVPD-914X-50-155.52 | Crystek | CVPD-914 | VCXO | 155.52 MHz | 3.3V |
| CVPD-914X-50-156.25 | Crystek | CVPD-914 | VCXO | 156.25 MHz | 3.3V |
| CVPD-914X-50-161.1328 | Crystek | CVPD-914 | VCXO | 161.1328 MHz | 3.3V |
| CVXO-016TX-50-12.352 | Crystek | CVXO-016T | VCXO | 12.352 MHz | 5V |
| CVXO-016TX-50-24.704 | Crystek | CVXO-016T | VCXO | 24.704 MHz | 5V |
| CVXO-016TX-50-8.192 | Crystek | CVXO-016T | VCXO | 8.192 MHz | 5V |
| CVXO-018TX-50-12.288 | Crystek | CVXO-018T | VCXO | 12.288 MHz | 3.3V |
| CVXO-018TX-50-12.352 | Crystek | CVXO-018T | VCXO | 12.352 MHz | 3.3V |
| CVXO-018TX-50-13.5 | Crystek | CVXO-018T | VCXO | 13.5 MHz | 3.3V |
| CVXO-018TX-50-16.384 | Crystek | CVXO-018T | VCXO | 16.384 MHz | 3.3V |
| CVXO-018TX-50-19.44 | Crystek | CVXO-018T | VCXO | 19.44 MHz | 3.3V |
| CVXO-018TX-50-20 | Crystek | CVXO-018T | VCXO | 20 MHz | 3.3V |
| CVXO-018TX-50-24.576 | Crystek | CVXO-018T | VCXO | 24.576 MHz | 3.3V |
| CVXO-018TX-50-24.704 | Crystek | CVXO-018T | VCXO | 24.704 MHz | 3.3V |
| CVXO-018TX-50-25 | Crystek | CVXO-018T | VCXO | 25 MHz | 3.3V |
| CVXO-018TX-50-27 | Crystek | CVXO-018T | VCXO | 27 MHz | 3.3V |
| CVPD-914X-50-166.6286 | Crystek | CVPD-914 | VCXO | 166.6286 MHz | 3.3V |
| CVPD-914X-50-167.3316 | Crystek | CVPD-914 | VCXO | 167.3316 MHz | 3.3V |
| CVPD-914X-50-77.76 | Crystek | CVPD-914 | VCXO | 77.76 MHz | 3.3V |
| CVPD-940-74.1758 | Crystek | CVPD-940 | VCXO | 74.1758 MHz | 3.3V |
| CVPD-940-74.250 | Crystek | CVPD-940 | VCXO | 74.25 MHz | 3.3V |
| CVPD-970X-625 | Crystek | CVPD-970 | VCXO | 625 MHz | 3.3V |
| CVPD-970X-644.5313 | Crystek | CVPD-970 | VCXO | 644.5313 MHz | 3.3V |
| CVPD-970X-666.5143 | Crystek | CVPD-970 | VCXO | 666.514 MHz | 3.3V |
| CVPD-970X-669.1281 | Crystek | CVPD-970 | VCXO | 669.1281 MHz | 3.3V |
| CVPD-970X-669.3265 | Crystek | CVPD-970 | VCXO | 669.3265 MHz |
3.3V |
